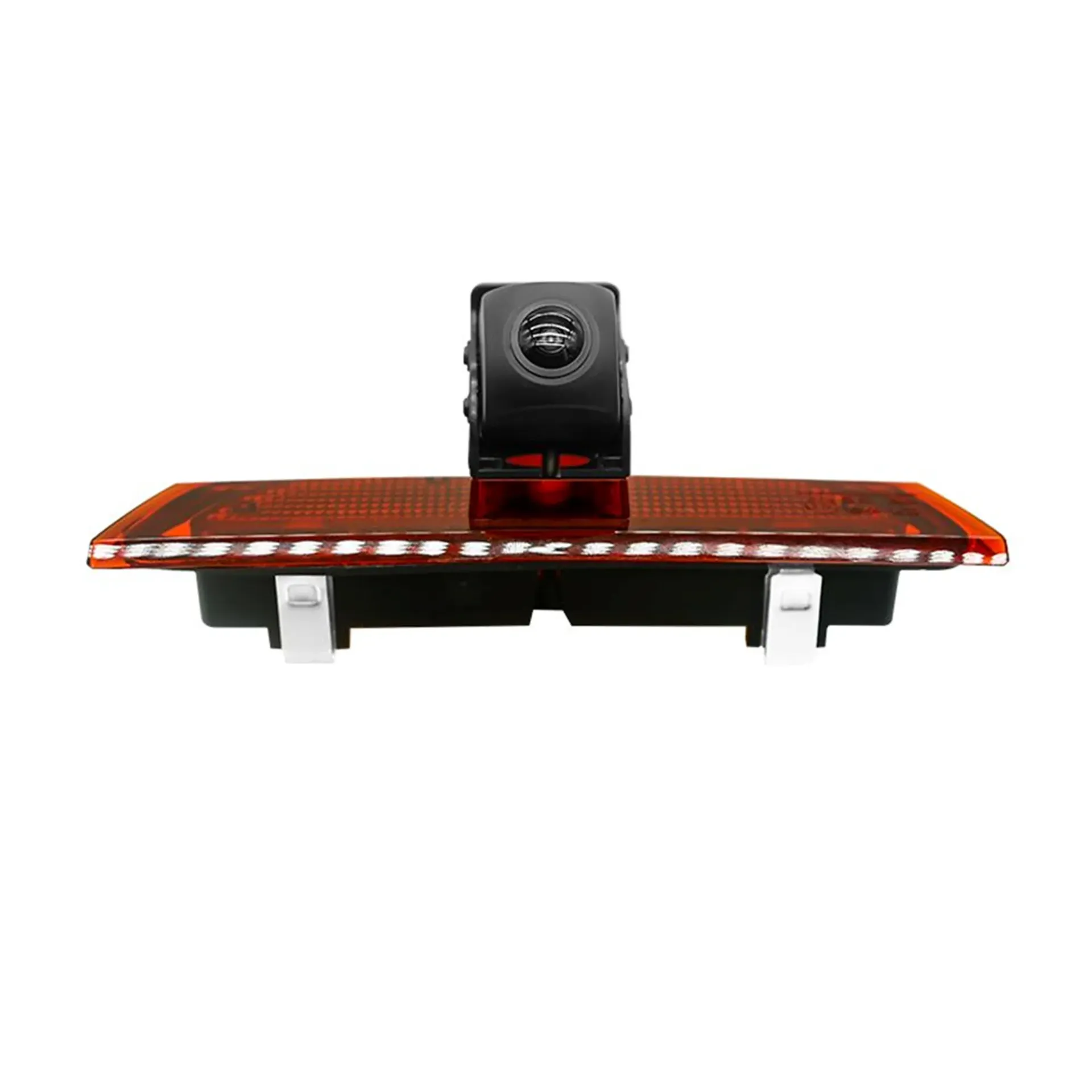

Ford Transit Connect & Courier (2023-Current) Brake Light Camera
Upgrade
your van or camper with an OEM-fit reversing brake light camera. Designed to
replace the original high-level brake light housing, it provides a clear rear
view while maintaining the vehicle's factory appearance.
Ideal
for improving visibility when reversing and manoeuvring, these cameras help
reduce blind spots, making parking safer and easier. Built with durable,
weather-resistant construction, they're designed for reliable performance in
all conditions and are compatible with a wide range of OEM and aftermarket
display systems (model dependent).
Key Features
- OEM-style brake light replacement design
- Maintains the vehicle's original appearance
- Wide-angle rear view for improved visibility
- Ideal for vans, campervans, and commercial
vehicles
- Weatherproof IP68 construction for all-weather
reliability
- Compatible with selected OEM and aftermarket
monitors
- Easy, vehicle-specific installation (model
dependent)
- Perfect for safer reversing and parking
Camera Features
- 1/2.7"
high-performance image sensor
- Supports
CVBS, AHD 720P, and AHD 1080P video output
- High-resolution
output up to 1920 × 1080
- Selectable
mirror/non-mirror image mode
- Switchable
parking guidelines
- Selectable
image flip function
- IP68-rated
waterproof construction
- Wide
6V–18V operating voltage range
- Rugged
flame-retardant PC housing designed for demanding automotive environments
Technical Specifications
|
Specification
|
Details
|
|
Image Sensor
|
1/2.7" HD CMOS Image Sensor
|
|
Effective Pixels
|
CVBS: 1920 × 530
AHD 1080P: 1920 × 1080
AHD 720P: 1280 × 720
|
|
Resolution
|
1000–2000 TVL
|
|
TV System
|
NTSC / PAL
|
|
Video Output
|
CVBS / AHD
|
|
Viewing Angle
|
Customisable
|
|
Image Modes
|
Mirror / Non-Mirror
|
|
Guide Lines
|
On / Off Selectable
|
|
Image Flip
|
Flip / No Flip Selectable
|
|
Waterproof Rating
|
IP68
|
|
Current Consumption
|
150 mA
|
