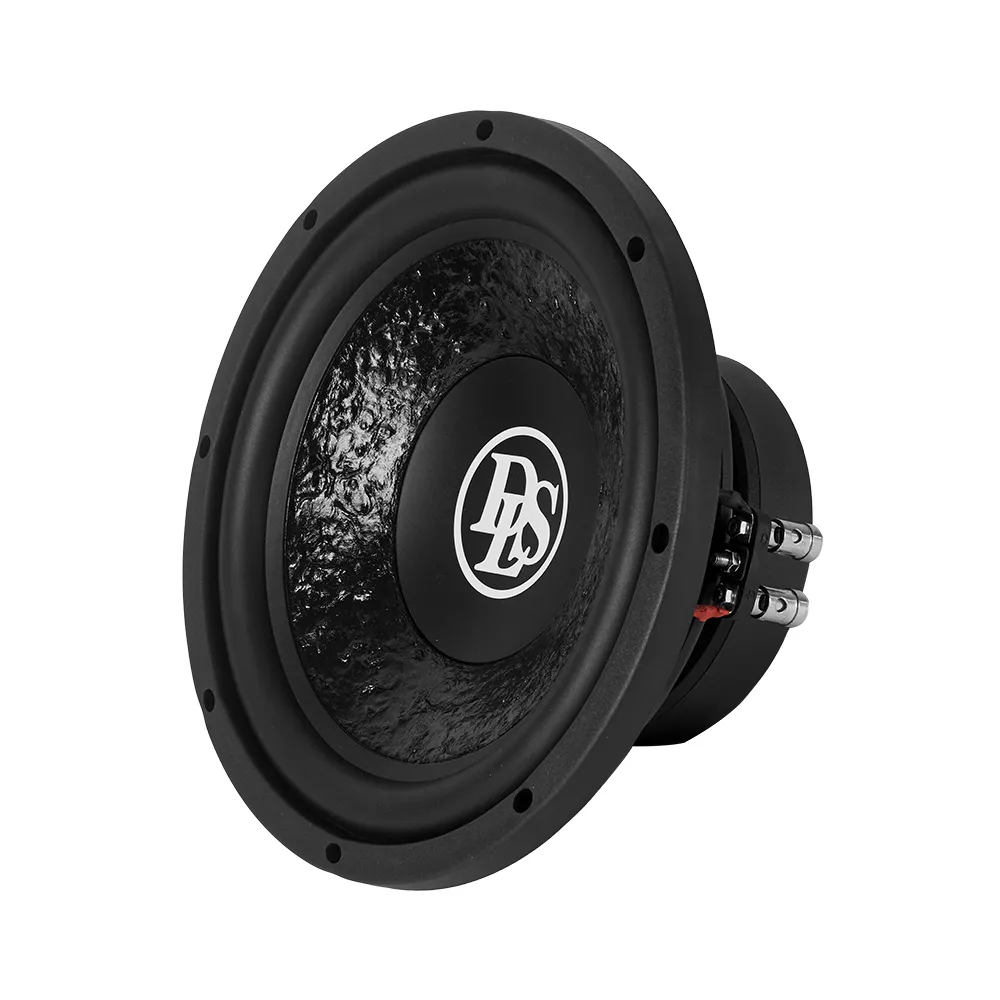

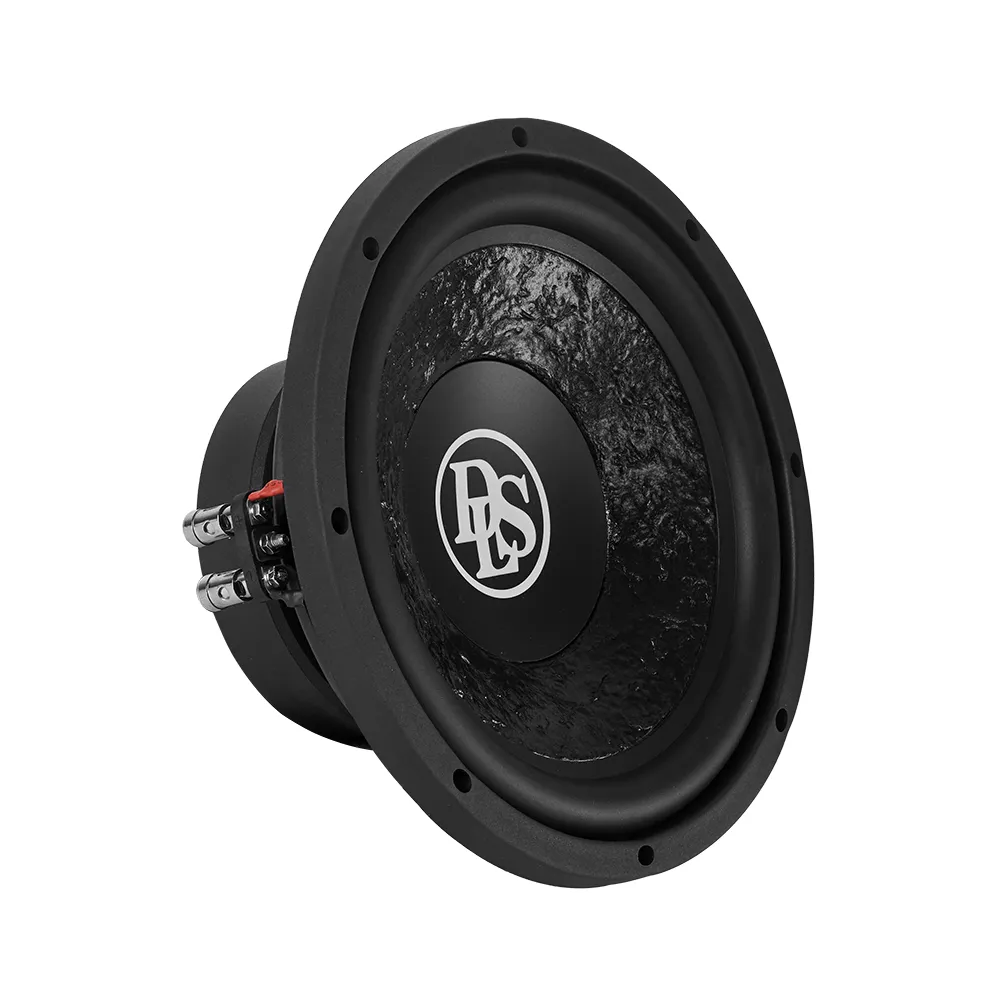

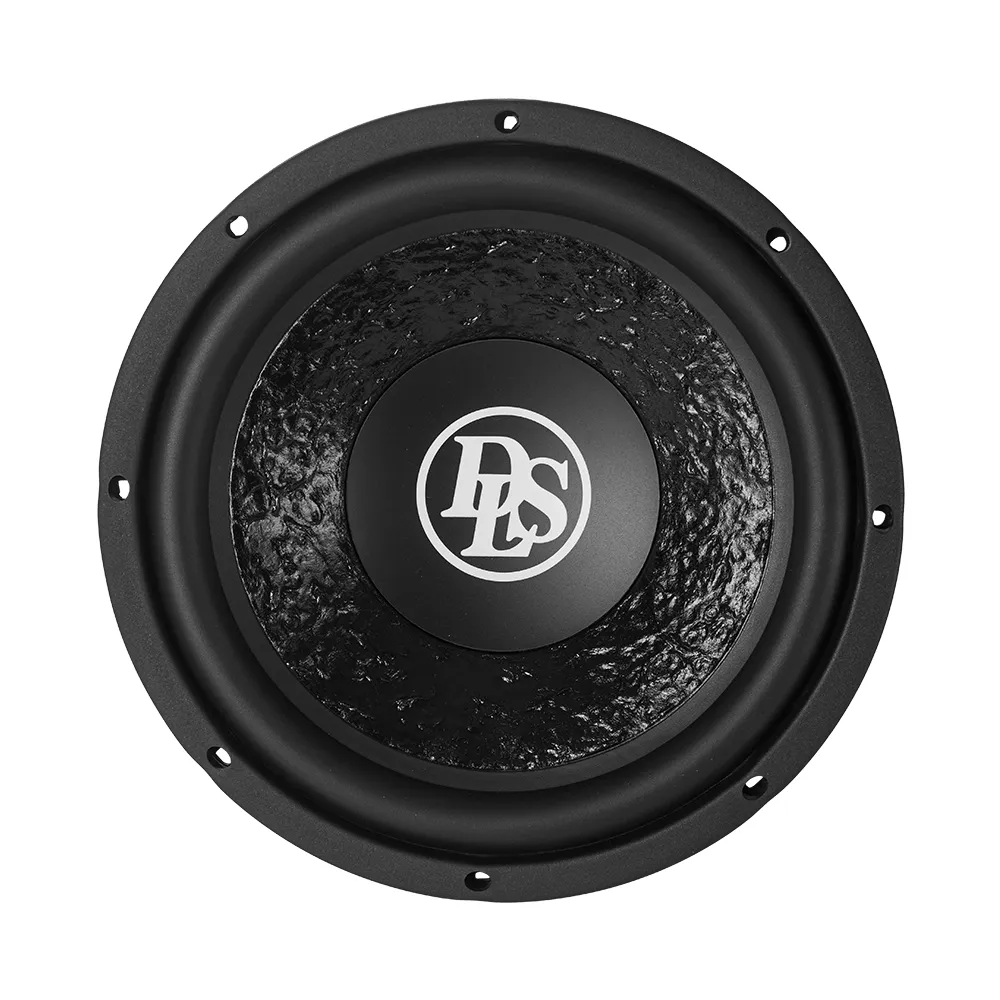

10"/250mm 2+2 Ohm Subwoofer
A durable 10 inch subwoofer with great performance.
Specifications
| Size | 10"/250mm |
|---|
| Impedance | 2+2 Ohm |
|---|
| Power RMS | 300W |
|---|
| Power MAX | 600W |
|---|
| Sensitivity | 86 dB |
|---|
| Voice coil size | 2"/51mm |
|---|
| Voice coil material | 4-layer copper/Kapton former |
|---|
| Magnet | 45 Oz Ferrite |
|---|
| Freq.range | 20 – 300 Hz |
|---|
| Weight | 4.5 Kg |
|---|
The unique DLS audio experience at a great value. An upgrade with durable quality and high performance.
• Especially suited for small sealed enclosures.
• Coated non-pressed paper (NPP) cone.
• 2” Kapton® voice coils with 4-layer copper wire.
• Dual ventilation in both pole piece and basket for great thermal dissipation.
• Durable steel basket and strong ferrite motor.
• Bumped backplate for extended excursion.
PARAMETERS
Fs: 29 Hz
Re: 3.8 (1.9+1.9) Ohm
Qms: 6.42
Qes: 0.50
Qts: 0.47
Cms: 0.23 mm/N
Mms: 98.4 g
Bl: 12.9
Vas: 45 L
Sd: 359.7 cm2
Xmax: ± 9 mm
Vd: 1.5 L
