8" Subwoofer 2+2 Ohm
8” subwoofer delivering clean, musical bass with a focus on control and detail.
Specifications
| Size | 8"/200mm |
|---|
| Impedance | 2+2 Ohm |
|---|
| Power RMS | 250W |
|---|
| Power MAX | 500W |
|---|
| Sensitivity | 85.5 dB |
|---|
| Voice coil size | 1.5" / 38.5mm |
|---|
| Voice coil material | 4-layer copper/Kapton former |
|---|
| Magnet | 2×22.5 Oz ferrite / Dual-stacked |
|---|
| Freq.range | 25 – 400Hz |
|---|
| Weight | 2.9kg |
|---|

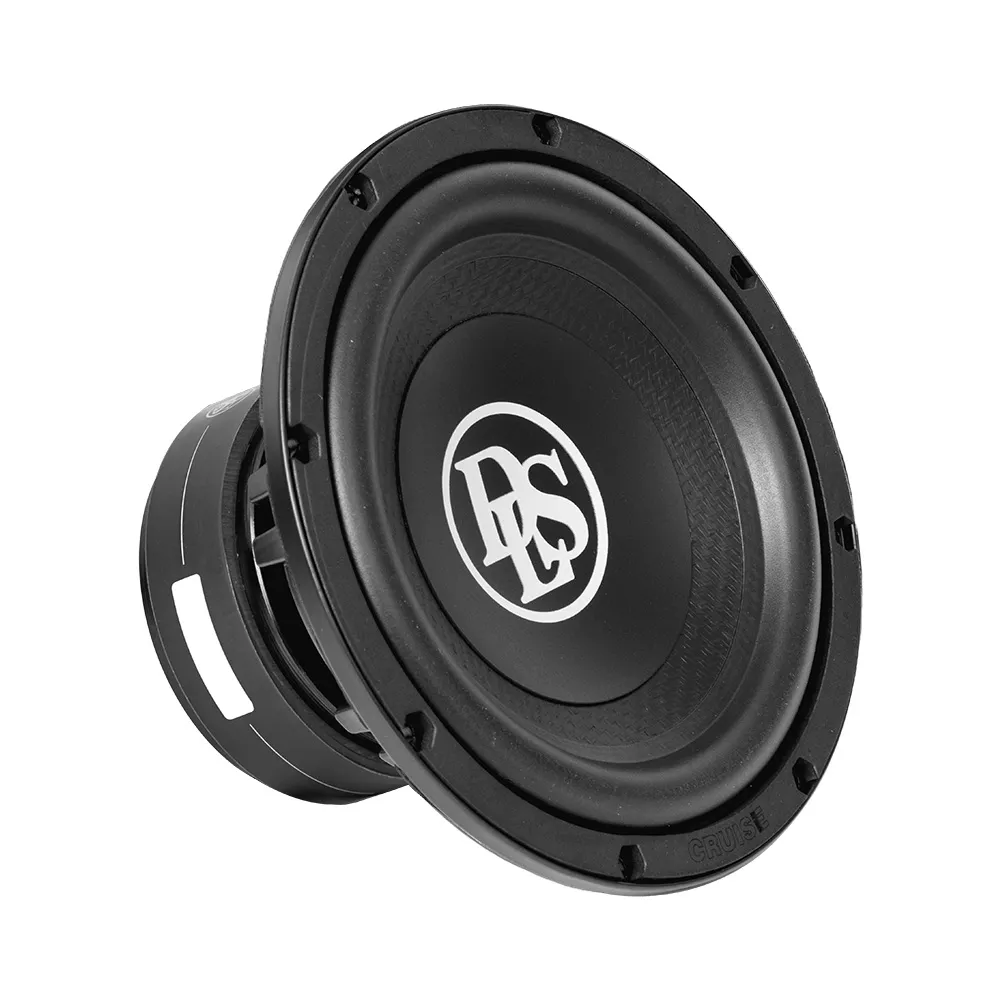

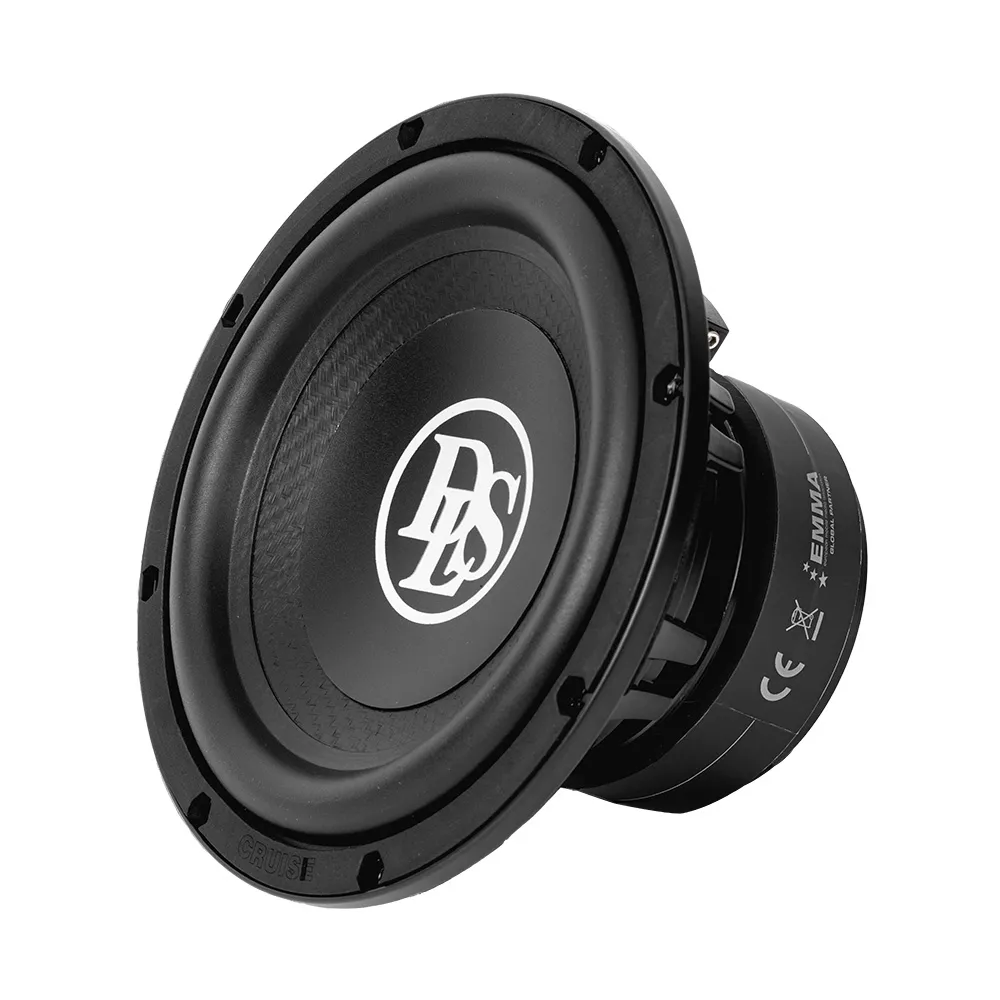

The CR8D.2 is an 8 inch subwoofer designed to bring depth and purpose to your music. It is not built to impress on paper, but to sound right in practice. That means a carefully controlled suspension, predictable behavior in compact enclosures, and a frequency response that supports the music instead of overpowering it.

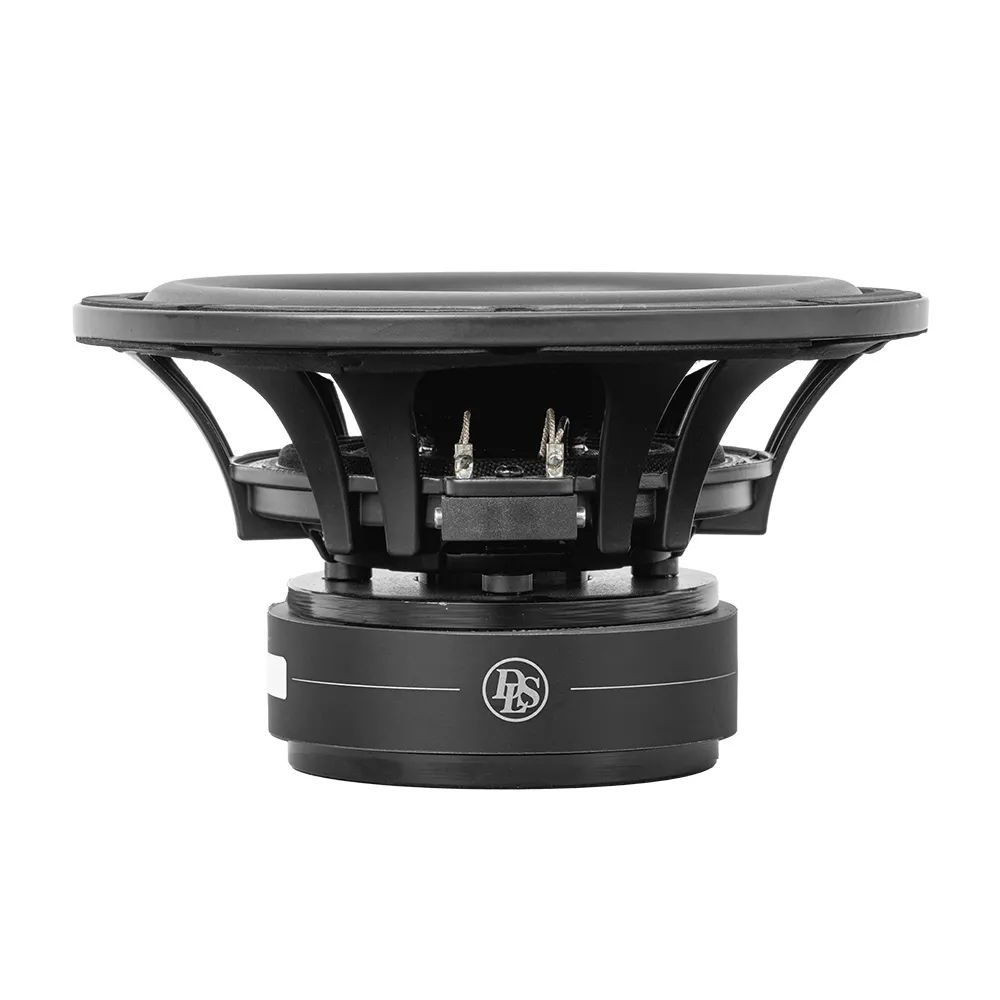

At the core is a dual stacked ferrite magnet system. It provides the force needed to drive the Kevlar compound cone with precision and consistency. The voice coil is copper, four layers, wound on a Kapton® former. Every part is chosen for stability, not show.
This is bass with intent. Made to match the tone, control and resolution of a high quality sound upgrade. It gives your system a solid foundation without shifting the focus.
• Natural and musical sounding premium subwoofer
• Accurate and durable 8” Kevlar Compound cone for high performance and stability
• Polypropylene dust cap
• Kapton® former with 4 layer copper voice coil
• Dual stacked ferrite magnets (2 x 22.5 oz)
• Die cast aluminum basket
• Optimized for smaller to medium sized enclosures

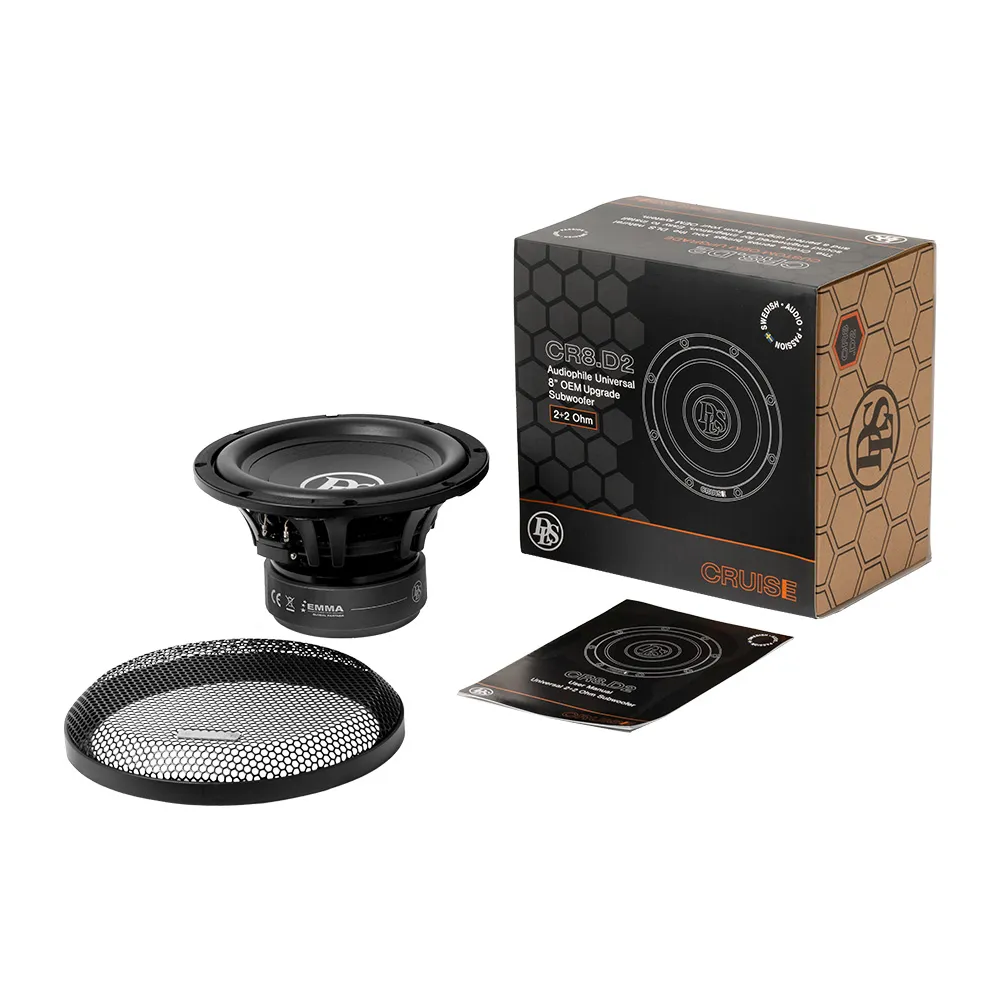

• Premium Cruise grill included
PARAMETERS
Re: 3.8 (1.9 + 1.9) Ohm
Fs: 36.0 Hz
Mms: 62.0 g
Cms: 0.32 mm/N
VAS: 19.2 L
Qts: 0.39
Qes: 0.41
Qms: 6.49
Bl: 11.3 T.m
SPL: 85.5 dB 1W/1m
Sd: 214 cm²
