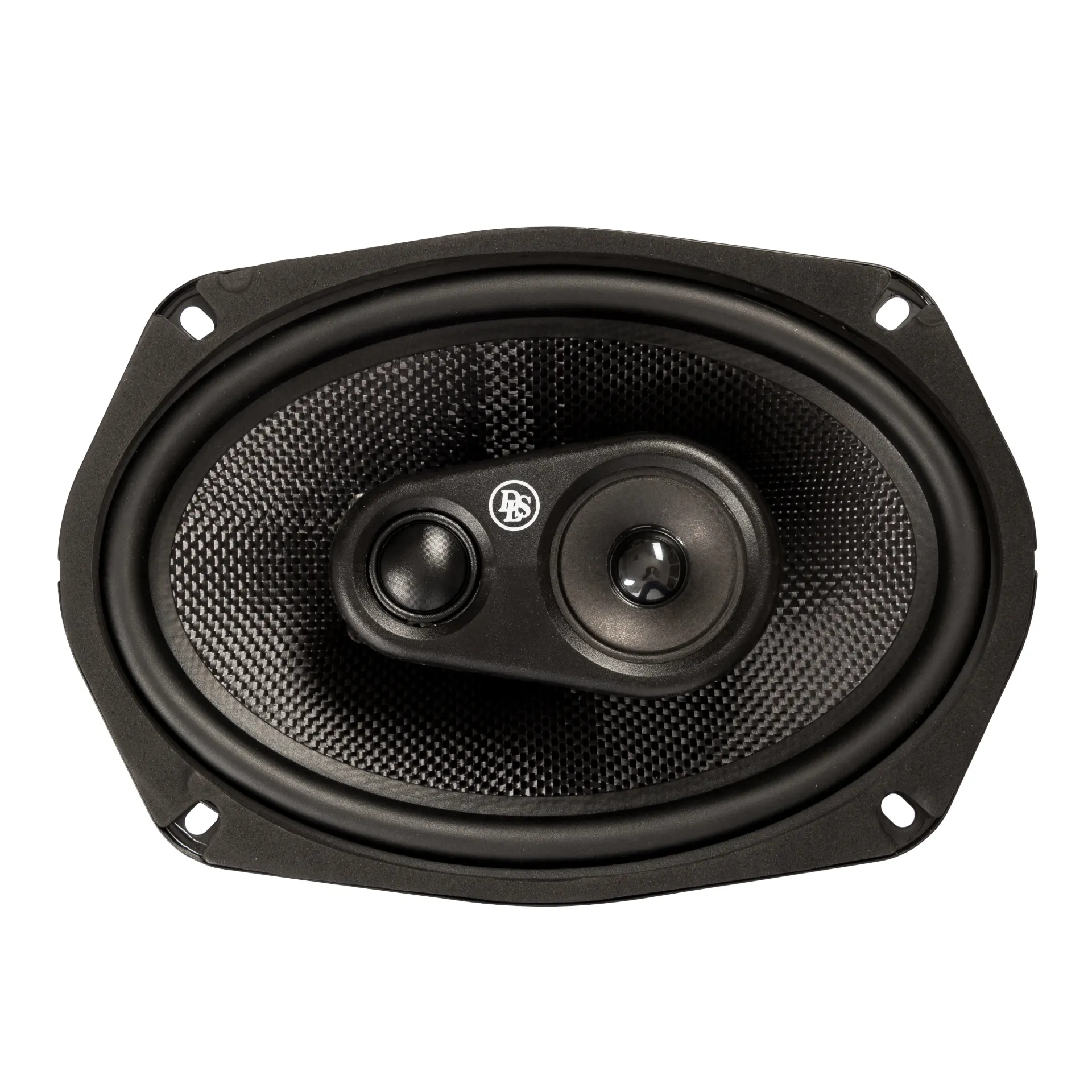

6x9"/156x236mm Coaxial Speaker
Performance series M369 is a very appreciated 3-way 6 x 9” with 2” mid driver and a 25 mm silk dome tweeter
Specifications
| Size | 6×9"/165x236mm |
|---|
| Power RMS | 80W |
|---|
| Power MAX | 120W |
|---|
| Tweeter | 1"/25mm / 2"/45mm midrange |
|---|
| Impedance | 4 Ohm |
|---|
| Freq.range | 50 – 20 000 Hz |
|---|
| Sensitivity | 89,3 dB |
|---|
| Magnet size | 100mm |
|---|
| Cone material | Wowen fibre glass |
|---|
| Mounting depth | 86mm |
|---|
| Mounting hole | 155x221mm |
|---|
performance series M369 is a very appreciated 3-way 6 x 9” with 2” mid driver and a 25 mm silk dome tweeter.

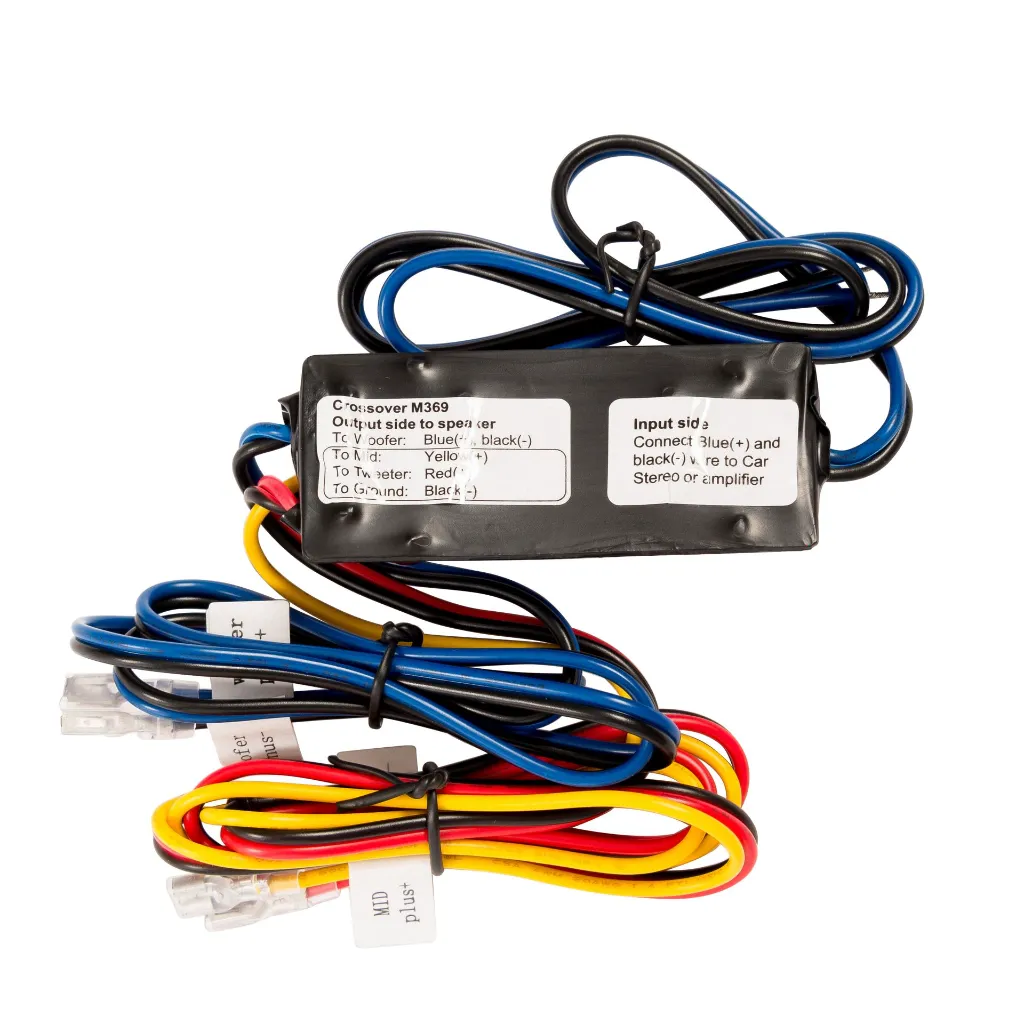

The woven fibreglass bass driver have a rubber surround and a powerful magnet system that guarantees good bass control and the silk dome tweeter provides detailed highs. Grilles are included. External in-line crossovers with 12dB slope for the tweeter and 6 dB for bass and midrange.
Crossover External filter with 12 and 6 dB slope
Size of filter box External cable filter
