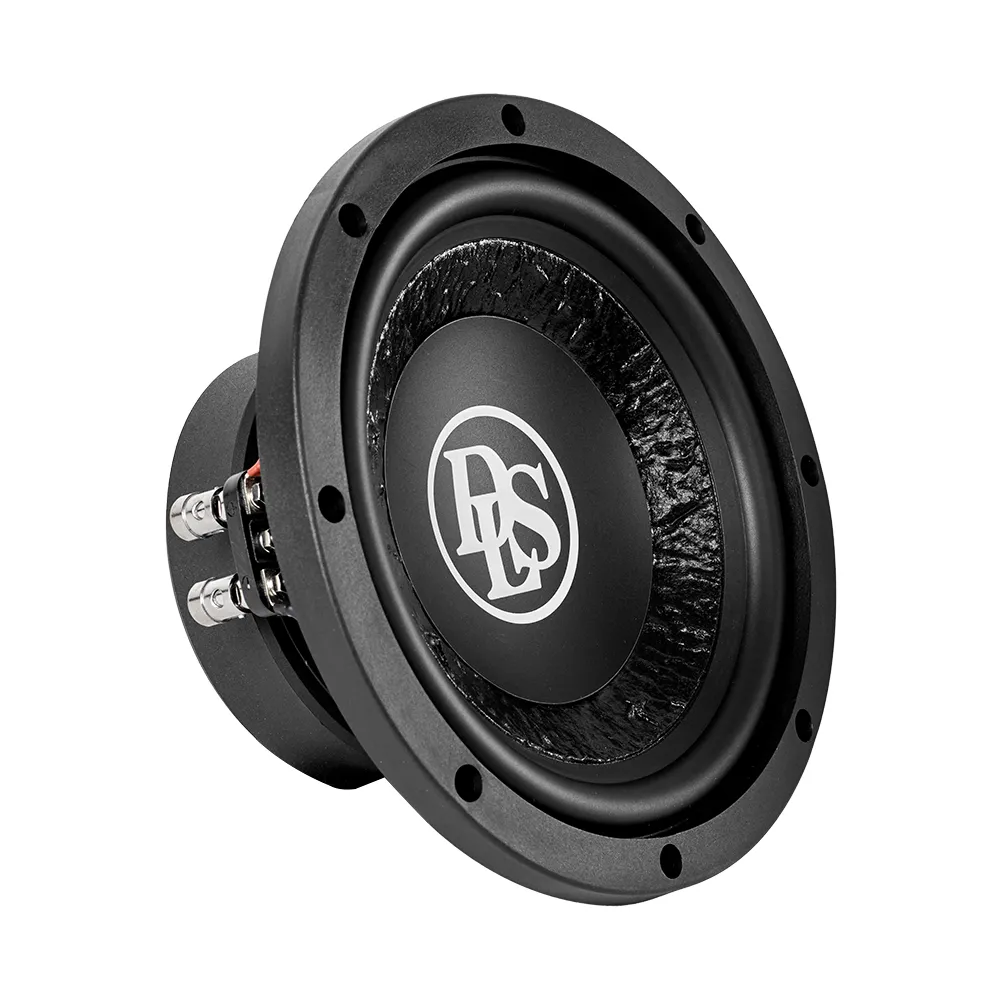

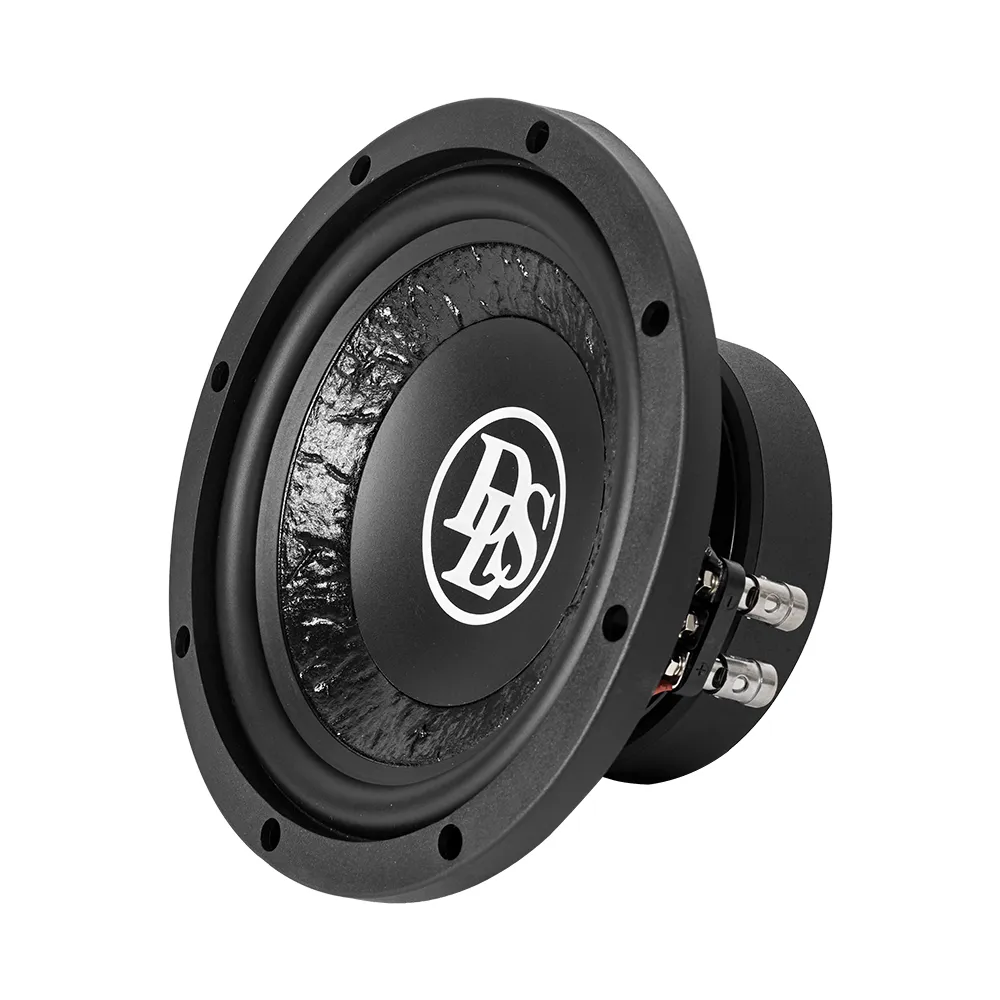

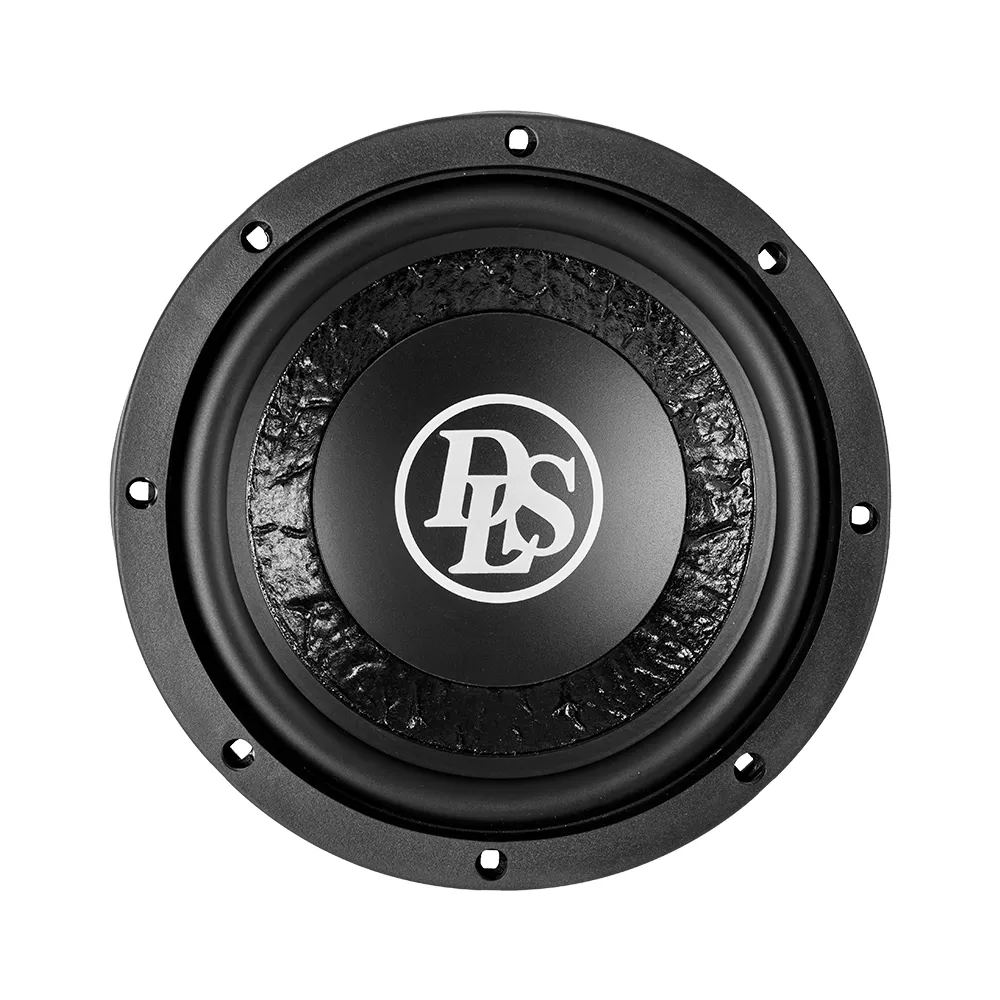

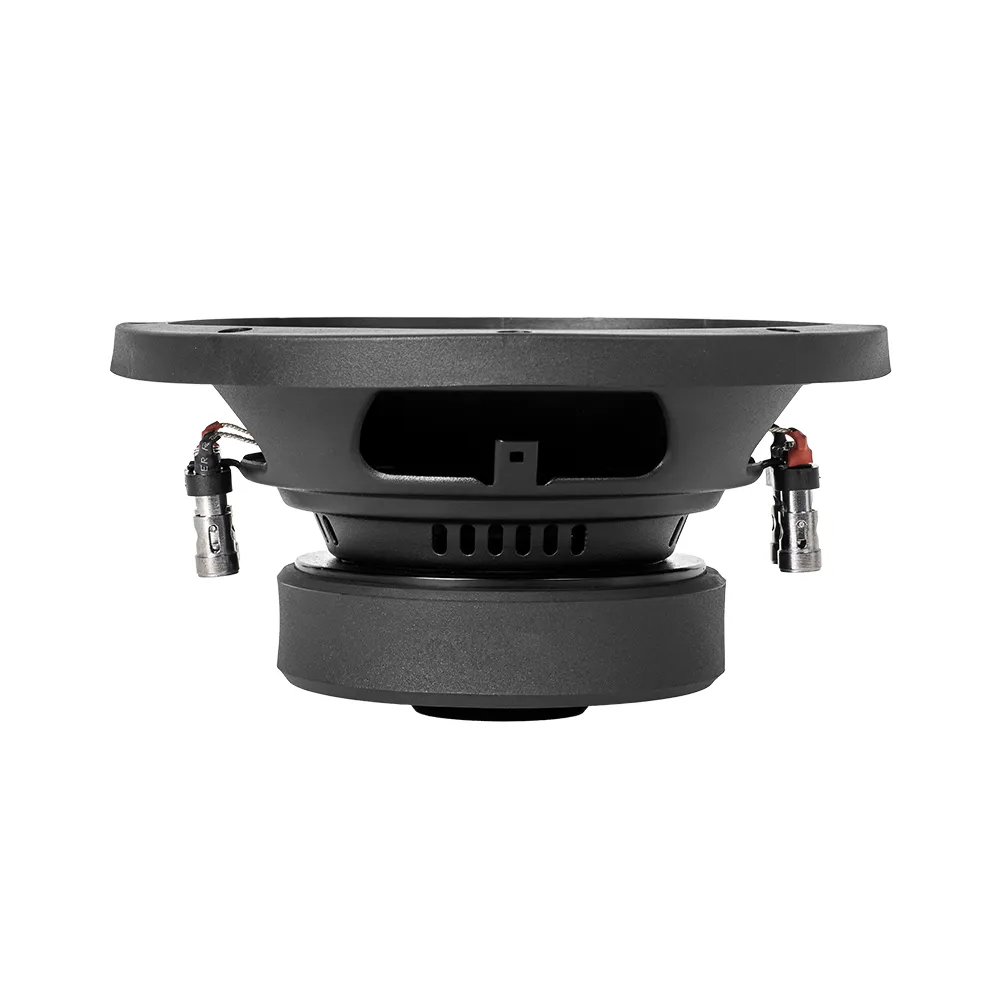

8"/200mm 2+2 Ohm Subwoofer
A durable 8 inch subwoofer with great performance.
Specifications
| Size | 8"/200mm |
|---|
| Impedance | 2+2 Ohm |
|---|
| Power RMS | 200W |
|---|
| Power MAX | 400W |
|---|
| Sensitivity | 85 dB |
|---|
| Voice coil size | 1.5” / 38mm |
|---|
| Voice coil material | 4-layer copper/Kapton former |
|---|
| Magnet | 38 Oz ferrite |
|---|
| Freq.range | 25 – 300 Hz |
|---|
| Weight | 3.1kg |
|---|
The unique DLS audio experience at a great value. An upgrade with durable quality and high performance.
• Especially suited for small sealed enclosures.
• Coated non-pressed paper (NPP) cone.
• 1.5” Kapton® voice coils with 4-layer copper wire.
• Dual ventilation in both pole piece and basket for great thermal dissipation.
• Durable steel basket and strong ferrite motor.
• Bumped backplate for extended excursion.
PARAMETERS
Fs: 33.2 Hz
Re: 3.8 (1.9+1.9) Ohm
Qms: 7.83
Qes: 0.51
Qts: 0.48
Cms: 0.37 mm/N
Mms: 62.2 g
Bl: 10.7
Vas: 25.3 L
Sd: 217.2 cm2
Xmax: ± 9 mm
Vd: 0.8 L
