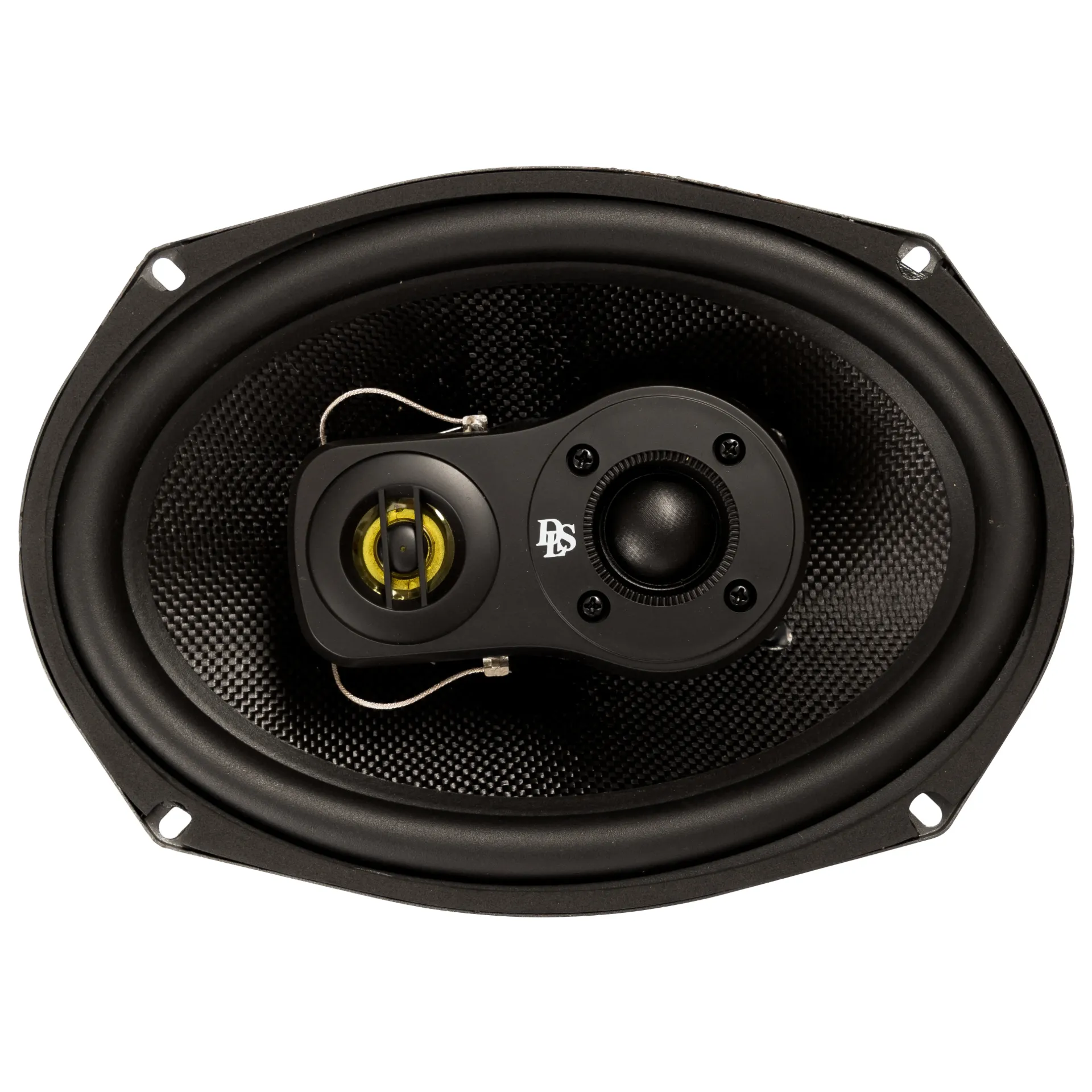

7x10"/180x250mm Coaxial Speaker
Extreme high power 7×10″ for use in 6×9″ cut out, play low and loud, oversized motor structure, long throw fibreglass woofer and 2x dome tweeters, external crossover, perfect for classic cars!
Specifications
| Size | 7×10"/180x250mm |
|---|
| Power RMS | 120W |
|---|
| Power MAX | 200W |
|---|
| Tweeter | 0.8"/20mm / 1"/25mm midrange |
|---|
| Impedance | 4 Ohm |
|---|
| Freq.range | 30 – 20 000 Hz |
|---|
| Sensitivity | 90 dB |
|---|
| Magnet size | 138mm |
|---|
| Cone material | Wowen fibre glass |
|---|
| Mounting depth | 95mm |
|---|
| Mounting hole | 170x240mm |
|---|
Probably the best 6×9” available”
The classic car dream speaker; 7×10” but drops in 6×9” cut-out and plays EXTREMELY GOOD!
Oversized motor structure with fibreglass cone and rubber surround provides very high power handling, 120W RMS – can be used with big Amps! The 25mm silk dome & 20 mm mylar tweeter plays with high clarity due to high quality component external crossover.

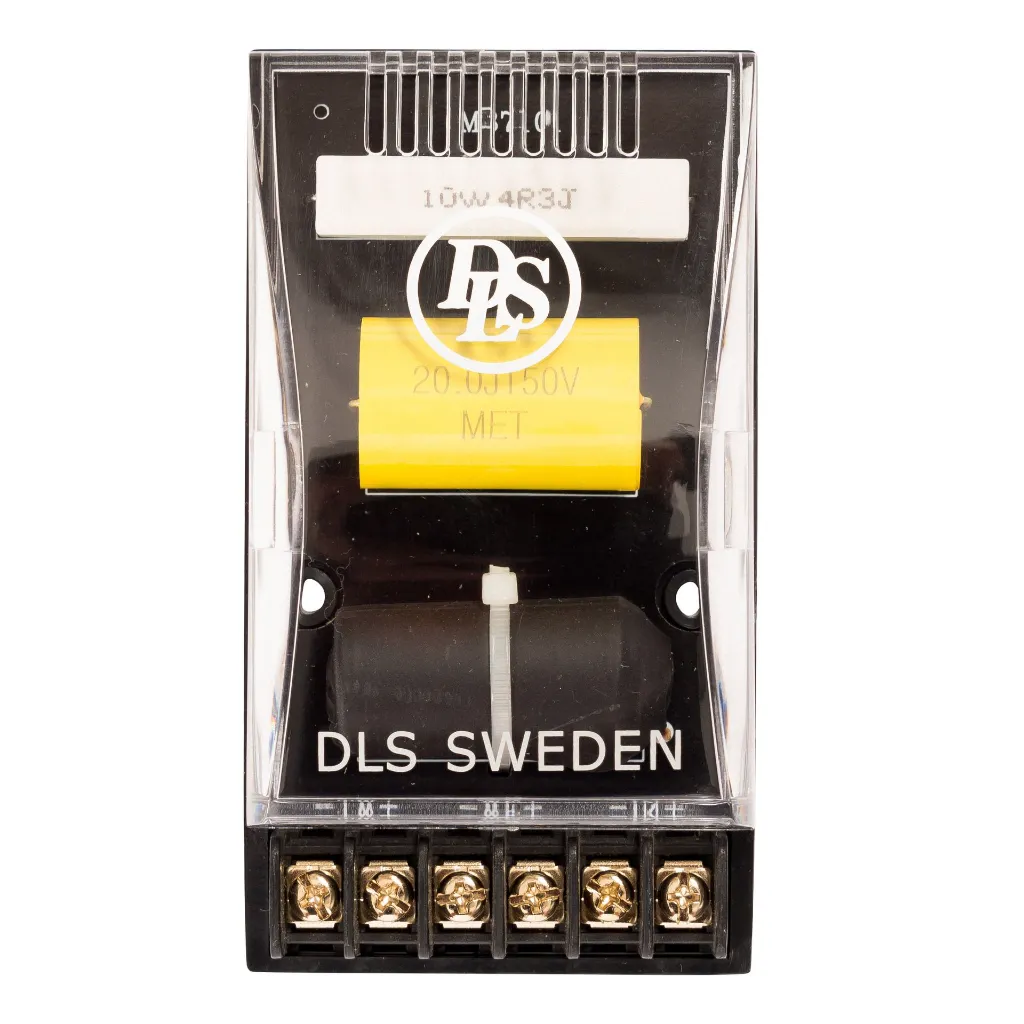

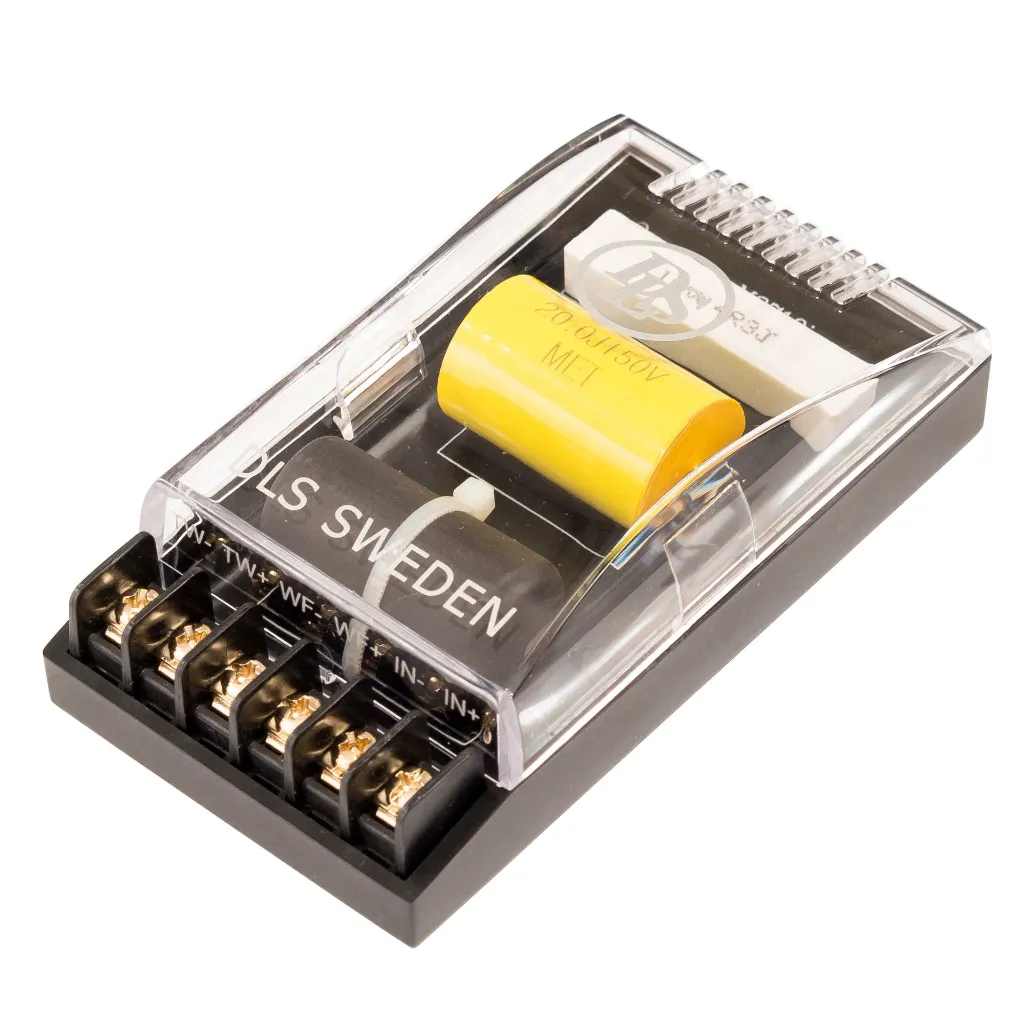

Crossover External woofer filter with 6 dB slope
Size of filter box Filter box L x W x H 120 x 65 x 32 mm
