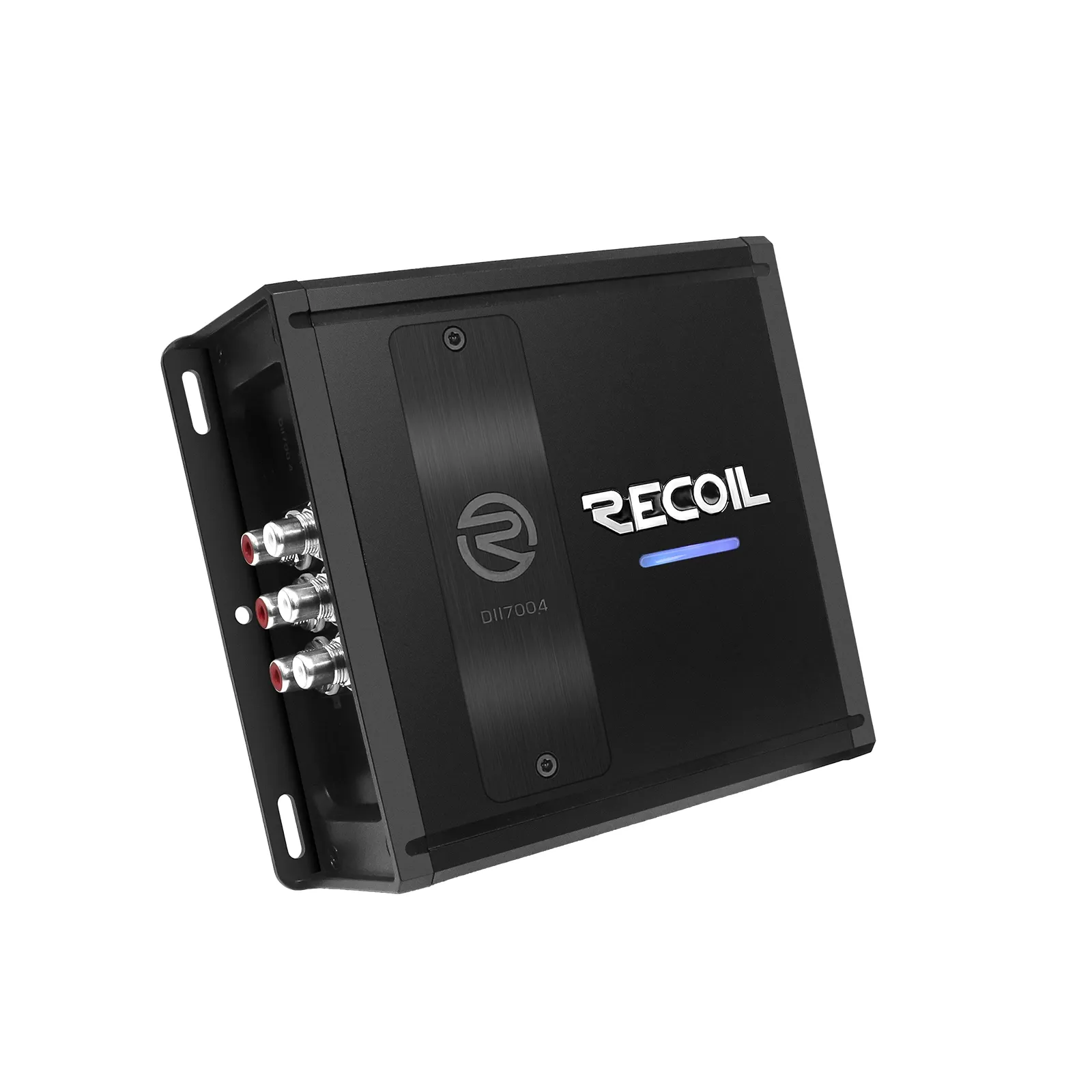

The DII700.4 is an ultra-compact 4-channel Class-D amplifier designed to deliver high power while taking up minimal installation space. With up to 150W x 4 @ 2 Ohm or 300W x 2 when bridged, it is ideal for powering aftermarket speakers or upgrading a factory audio system.
Key Features:
-
4-channel Class-D amplifier
-

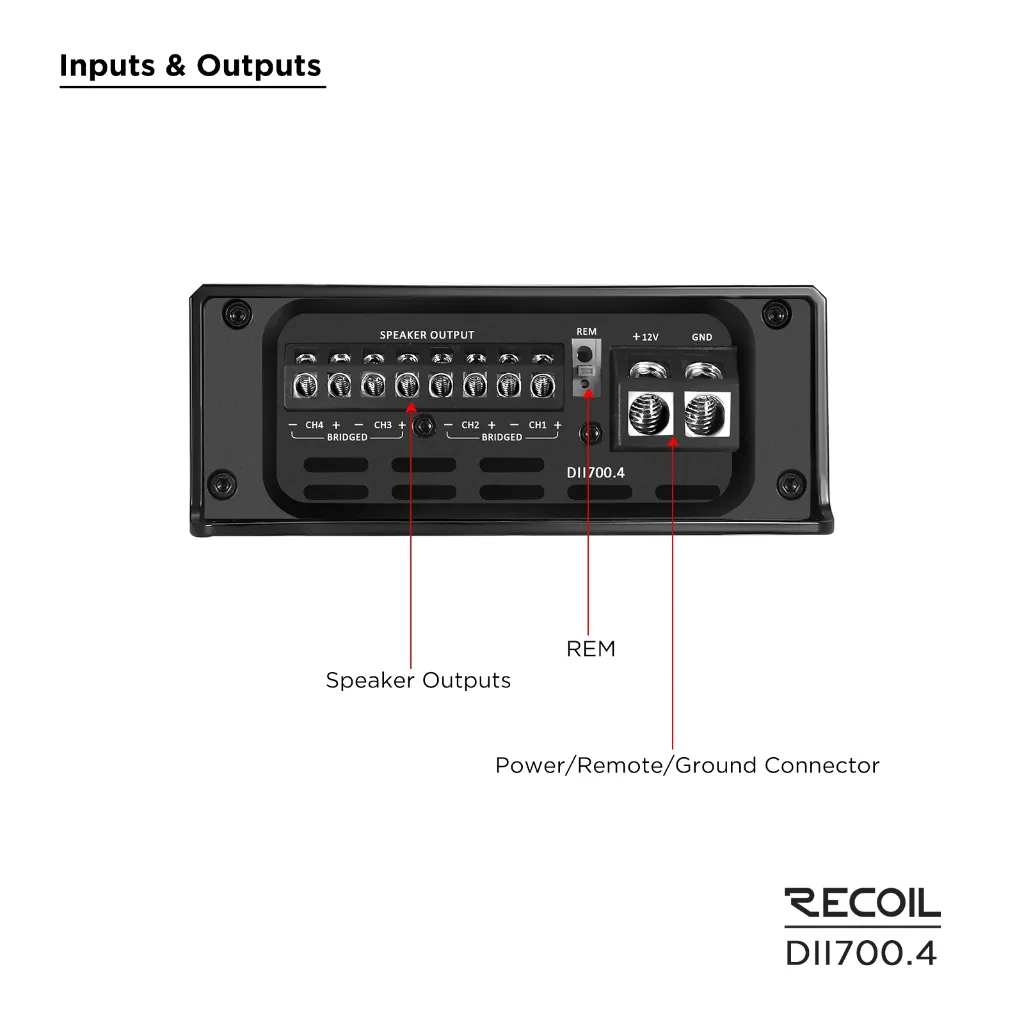

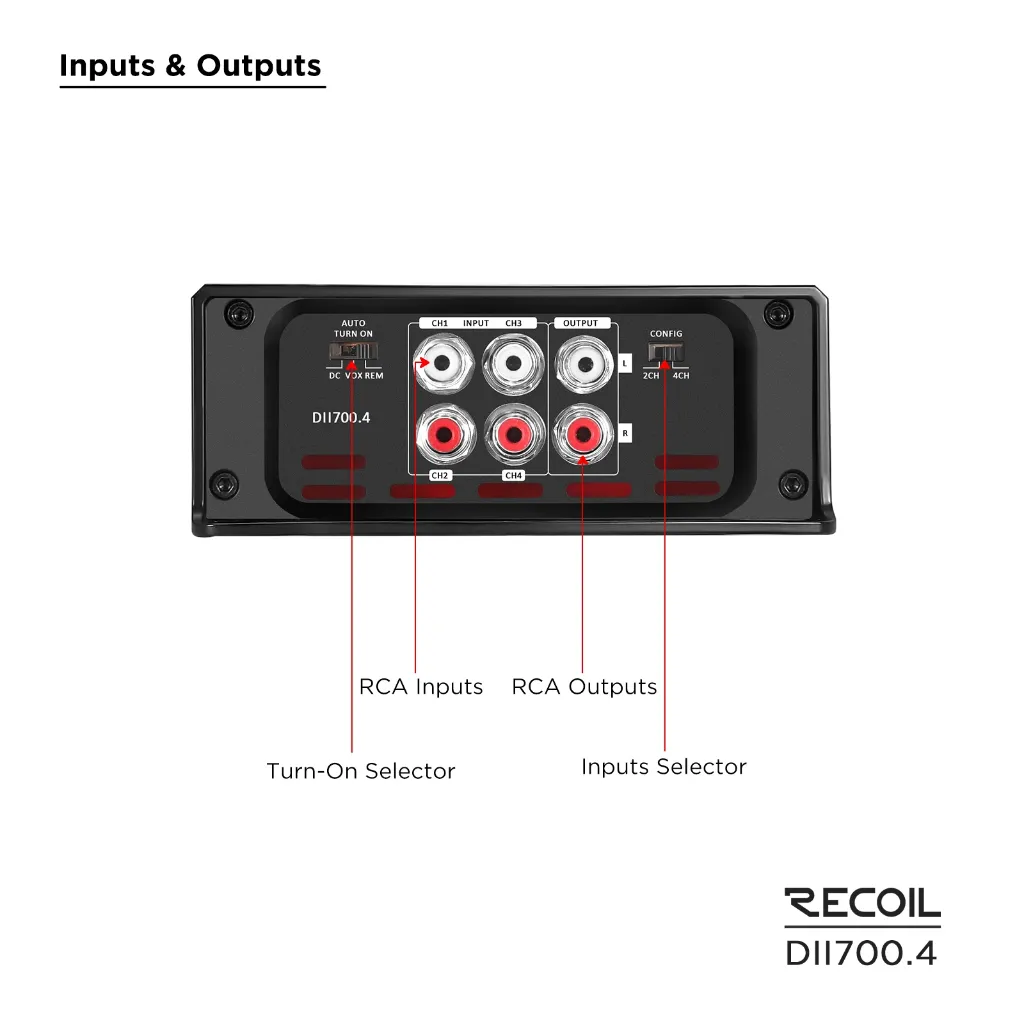

RCA and speaker-level inputs
-
RCA pass-through outputs
-

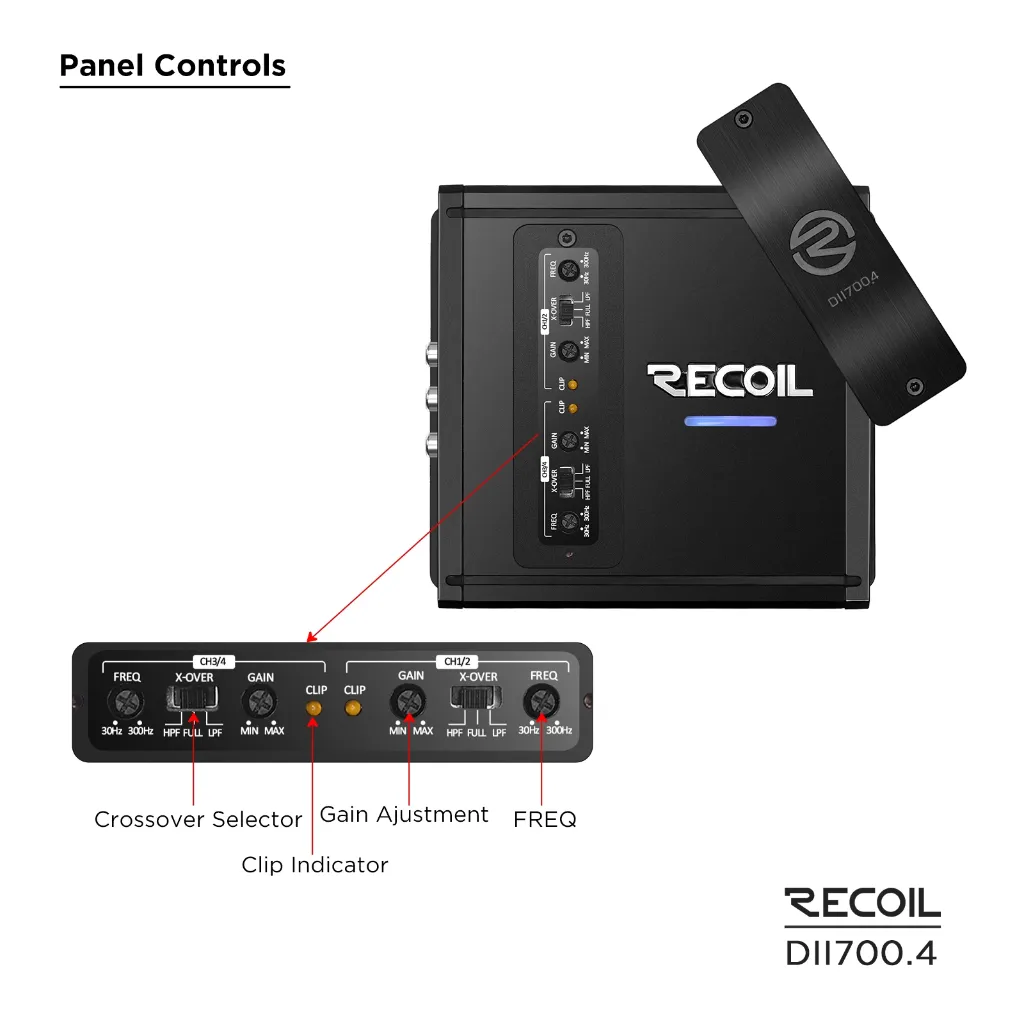

Adjustable gain, HPF, LPF and crossover
-
2/4-channel input selection
-
REM, VOX and DC turn-on modes
-
Thermal, voltage, speaker and short-circuit protection
-
Conformal-coated circuit board for improved resistance to dust and moisture
-
Suitable for car, marine, powersport, golf cart and bike applications
-
Ultra-compact design for easy installation
Power @ 1 Ohm (14.4V): N/A

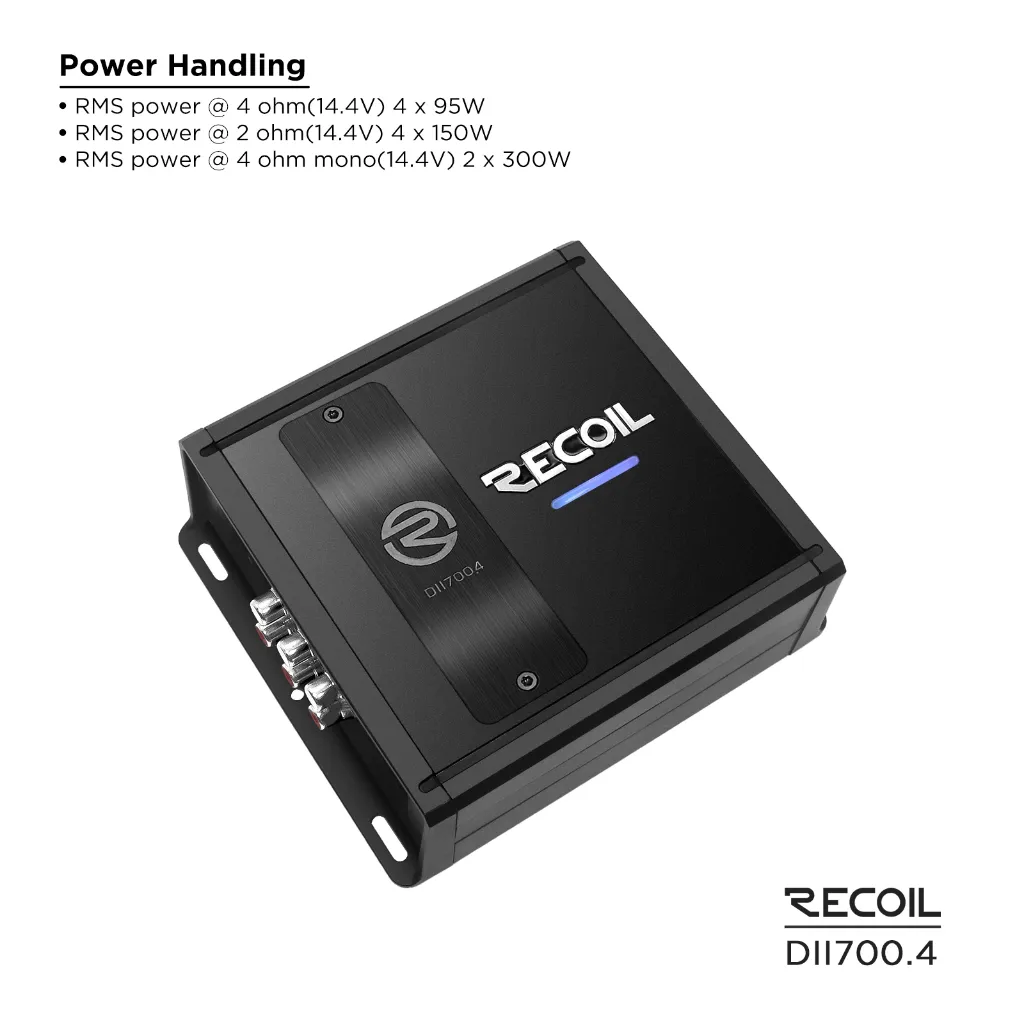

Power @ 2 Ohm (14.4V): 150W x 4
Power @ 4 Ohm (14.4V): 95W x 4
Power (Bridged) @ 4 Ohm (14.4V): 300W x 2
Frequency Response: 10Hz-24kHz
Signal to Noise: 85dB
Efficiency @ 4 Ohm: 78%
Input Sensitivity: 0.2V-12V
High Pass Filter: 30Hz-300Hz
Low Pass Filter: 30Hz-300Hz
Fuse Rating: 50A ATC

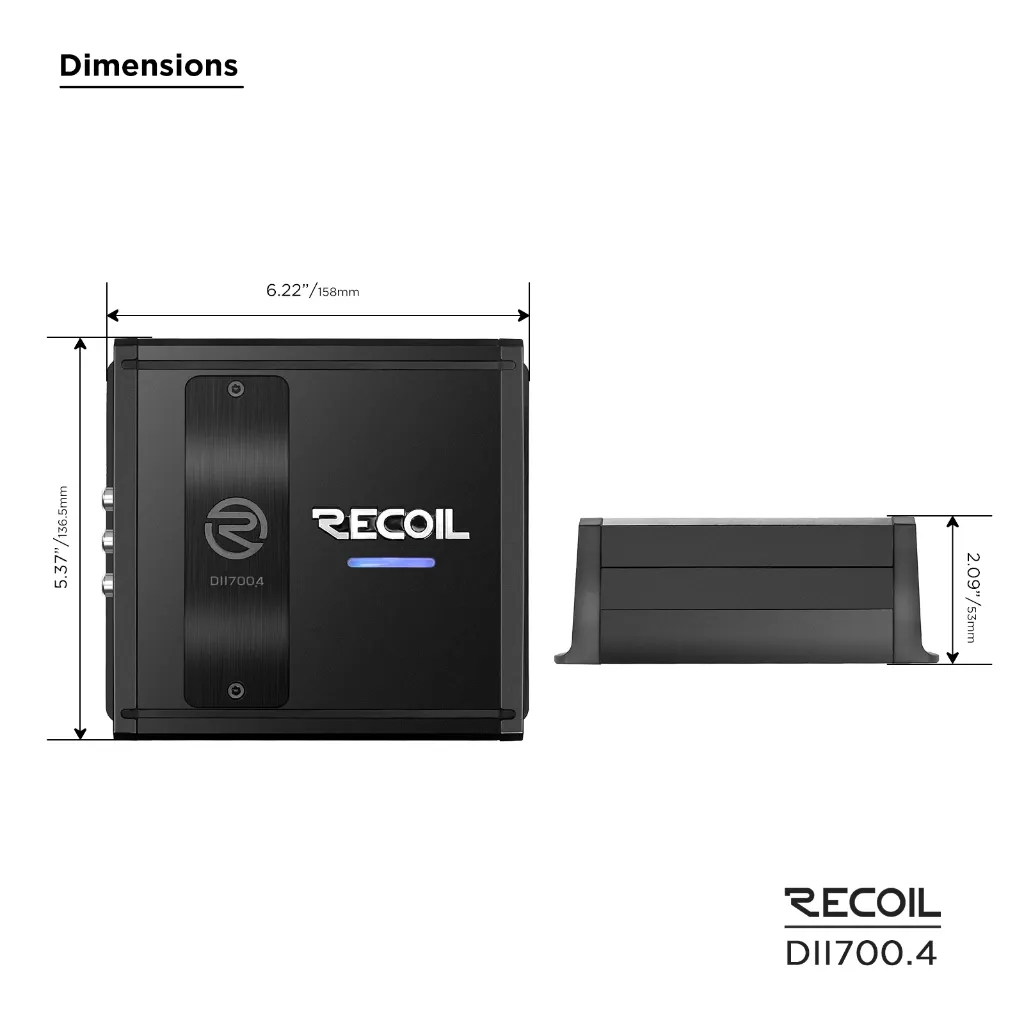

Dimensions: 158mm x 136.5mm x 53mm
