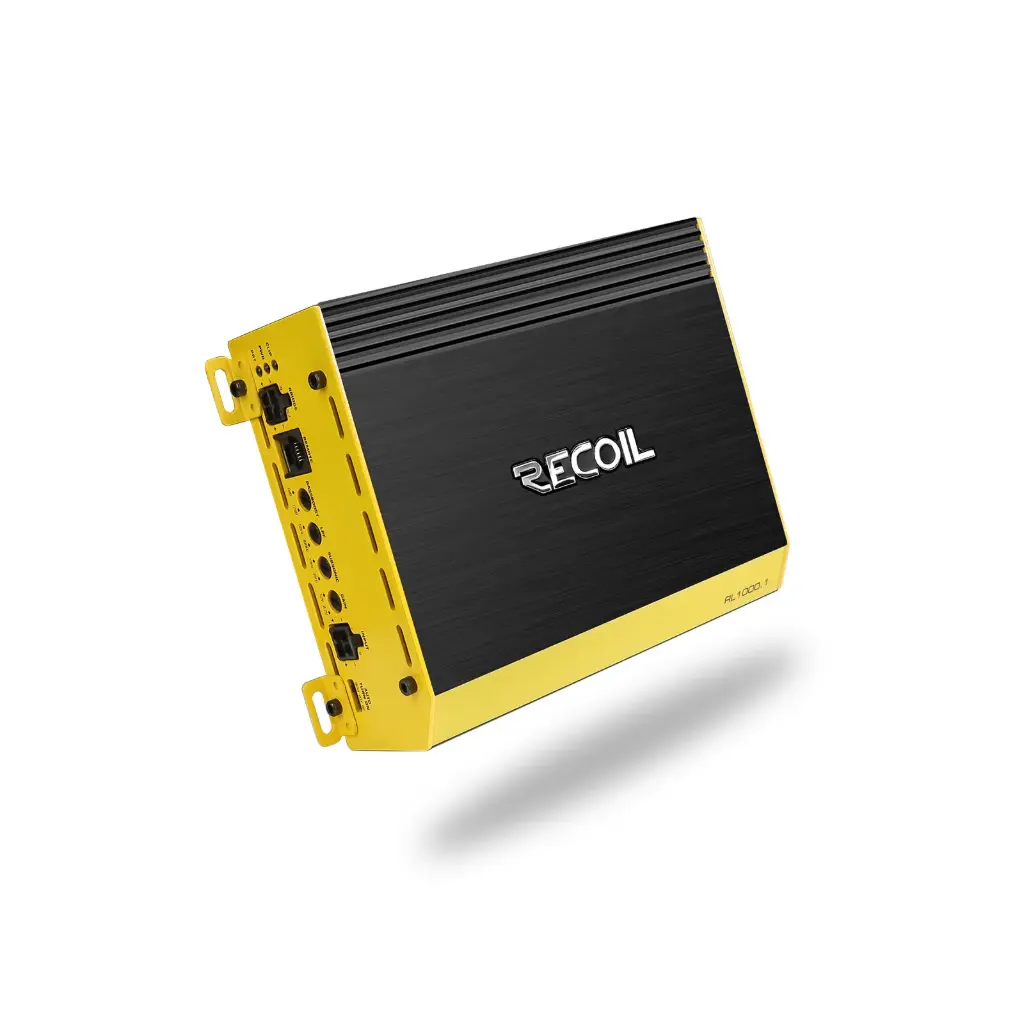

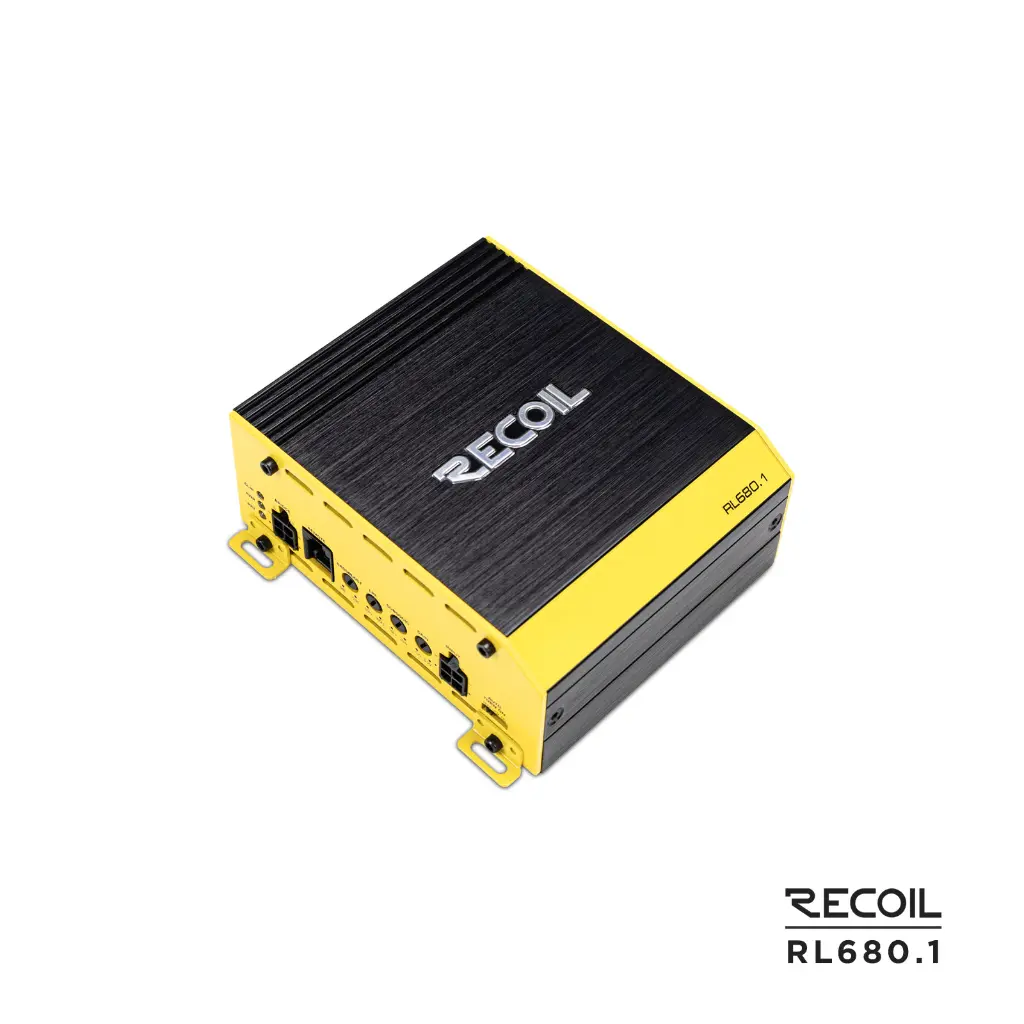

680 WATTS CLASS-D MONO AMPLIFIER
SPECIFICATIONS
4 Way Protection Circuit:Thermal, Voltage, Speaker, DC

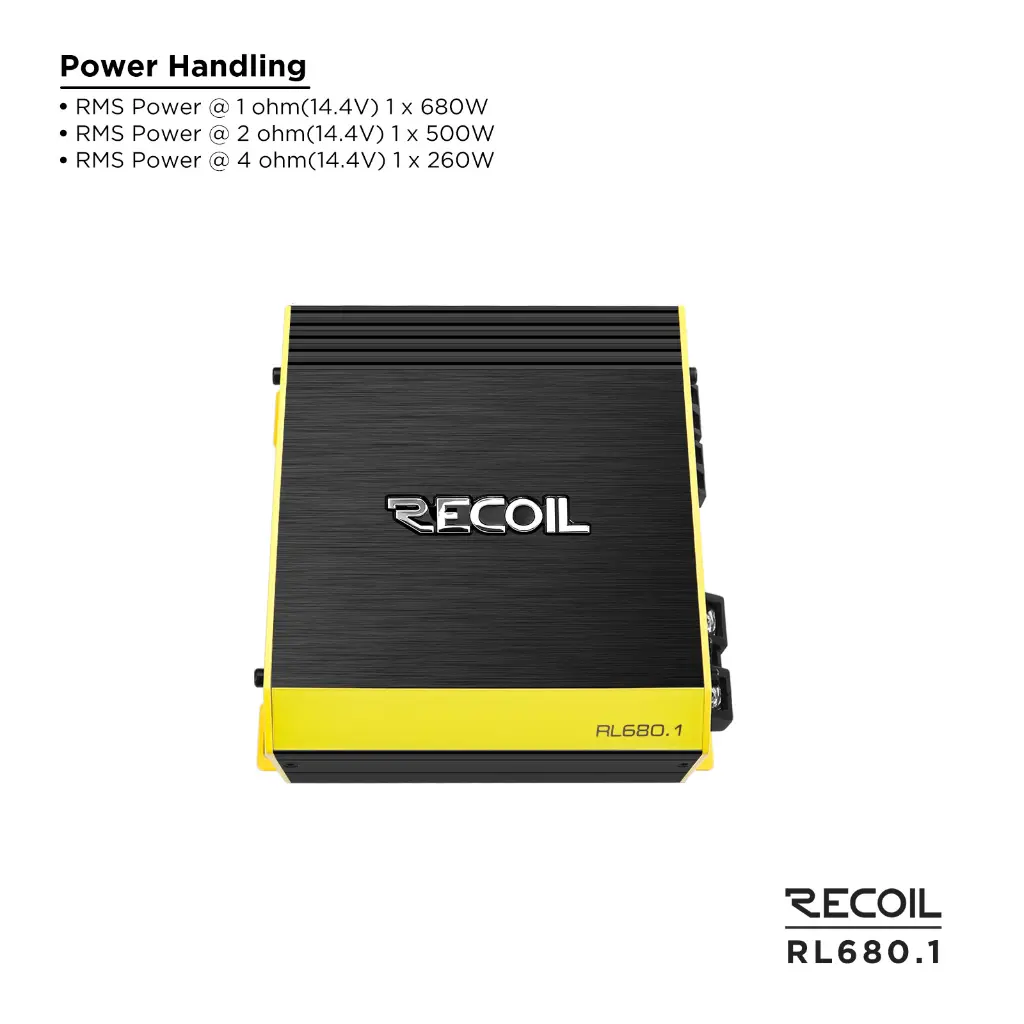

Power @1Ohm (14.4V):680W x 1
Power @2Ohm (14.4V):500W x 1
Power @4Ohm (14.4V):260W x 1
Power (Bridged) @4Ohm (14.4V):N/A
Power (Bridged) @2Ohm (14.4V):N/A
Operating Voltage:9V-16V
Idling Current (Power On):690mA
Frequency Response:10Hz-300Hz
Signal to Noise Ratio (SNR):94dB
THD+N (@1W):0.23%
Input Sensitivity(Low Level):220mV-12V
Input Sensitivity(High Level):N/A
Bass Boost:0-12dB
Subsonic Filter:10Hz-35Hz
Crossover LPF:50Hz-300Hz
Crossover HPF:N/A
Bass Remote:Yes
Clip Indication:1%
Fuse Rating:40A

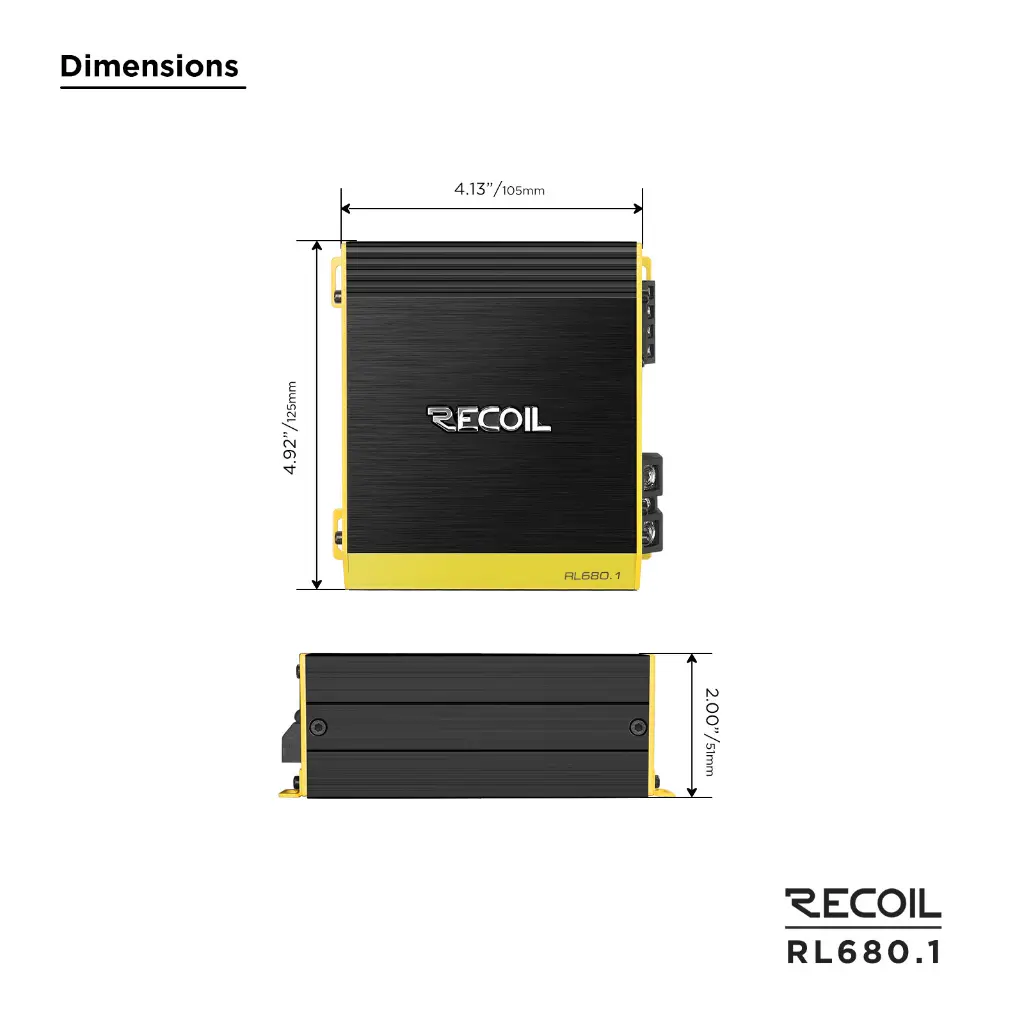

Dimensions:4.13″x4.92″x2″(105mmx125mmx51mm)
