6.5" Subwoofer 2+2 Ohm
6.5” subwoofer delivering clean, musical bass with a focus on control and detail.
Specifications
| Size | 6.5"/165mm |
|---|
| Impedance | 2+2 Ohm |
|---|
| Power RMS | 180W |
|---|
| Power MAX | 360W |
|---|
| Sensitivity | 85 dB |
|---|
| Voice coil size | 1.5" / 38.5mm |
|---|
| Voice coil material | 4-layer copper/Kapton former |
|---|
| Magnet | 2×22.5 Oz ferrite / Dual-stacked |
|---|
| Freq.range | 25 – 400Hz |
|---|
| Weight | 2.7kg |
|---|
The CR6D.2 is a 6.5-inch subwoofer designed to bring depth and purpose to your music. It’s not built to impress on paper, but to sound right in practice. That means a carefully controlled suspension, predictable behavior in small enclosures, and a frequency response that supports the music instead of overpowering it.

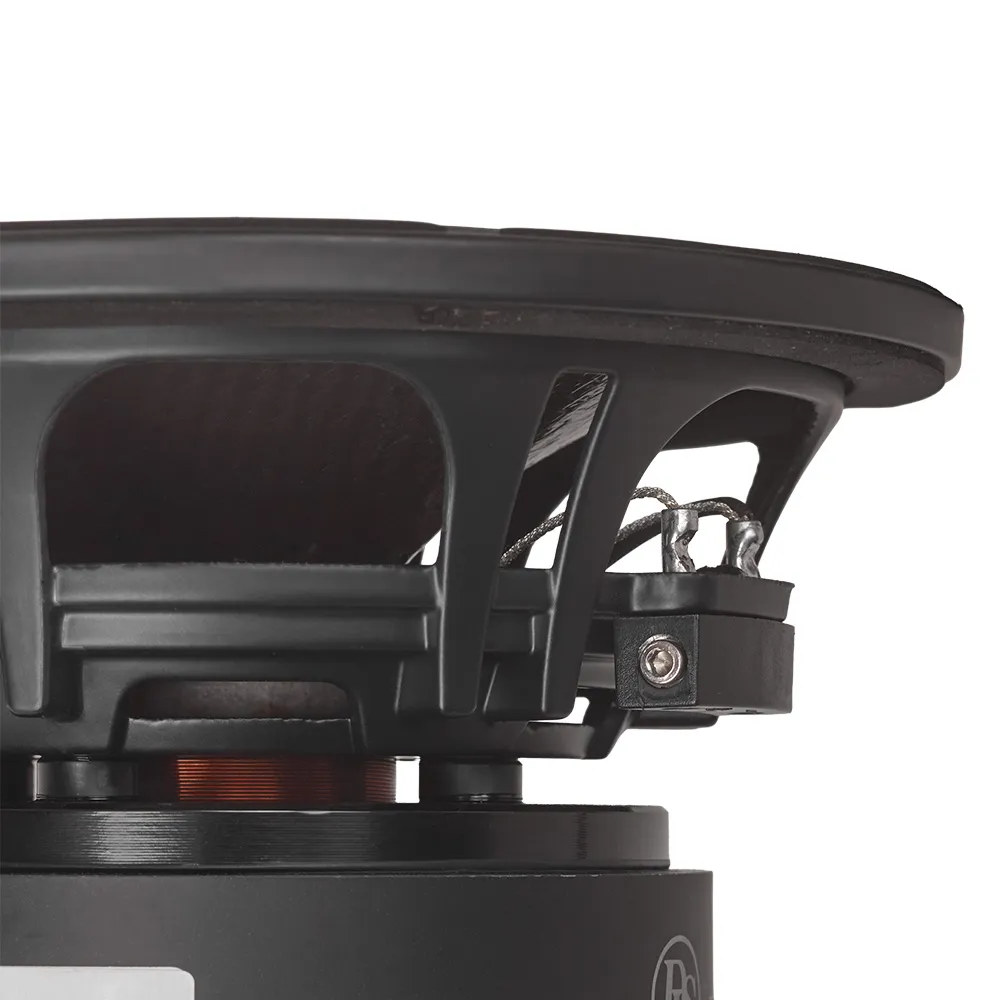

At the core is a dual-stacked ferrite magnet system. It provides the force needed to drive the Kevlar-reinforced cone with precision and consistency. The voice coil is copper, four layers, wound on a Kapton former. Every part is chosen for stability, not show.
This is bass with intent. Made to match the tone, control and resolution of a high-quality sound upgrade. It gives your system a solid foundation without shifting the focus.
• Natural and musical-sounding premium subwoofer

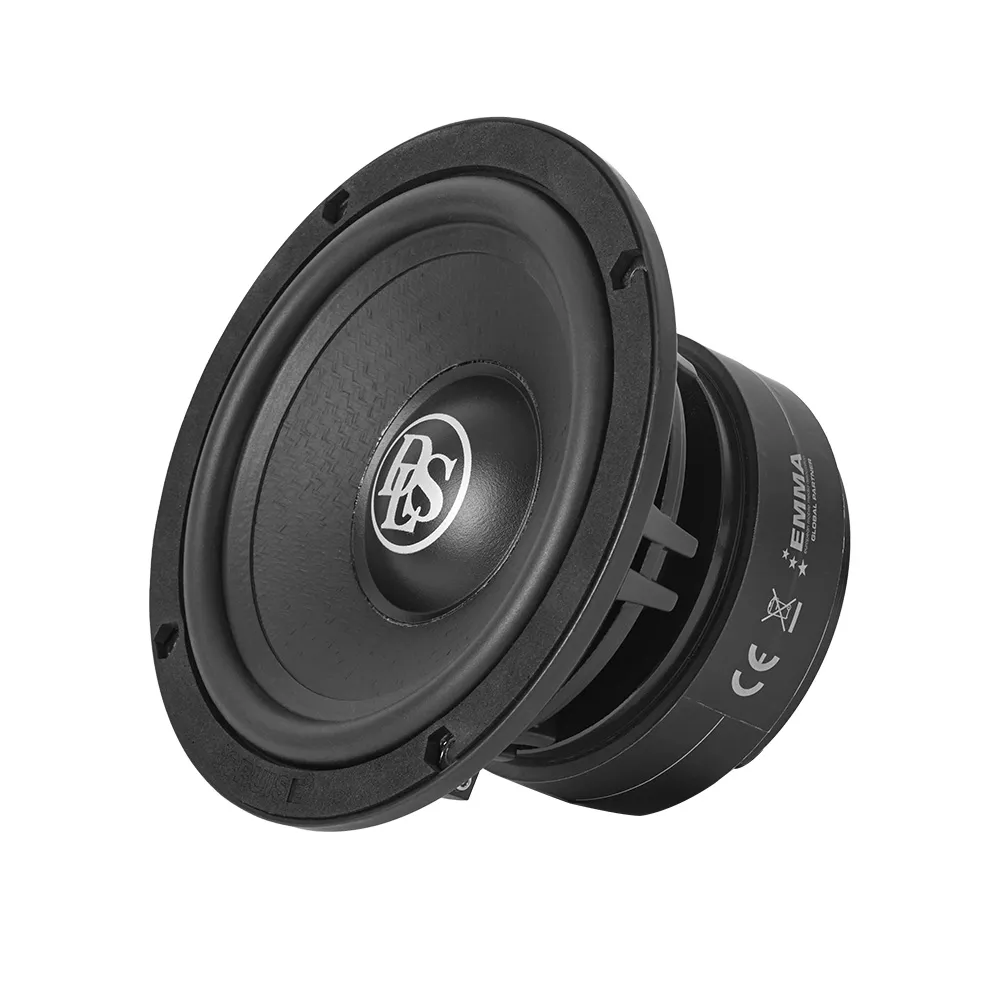

• Accurate & durable 6.5” Kevlar Compound cone for high performance and durability
• Polypropylene dust cap
• Kapton® former / 4-layer copper voice coil

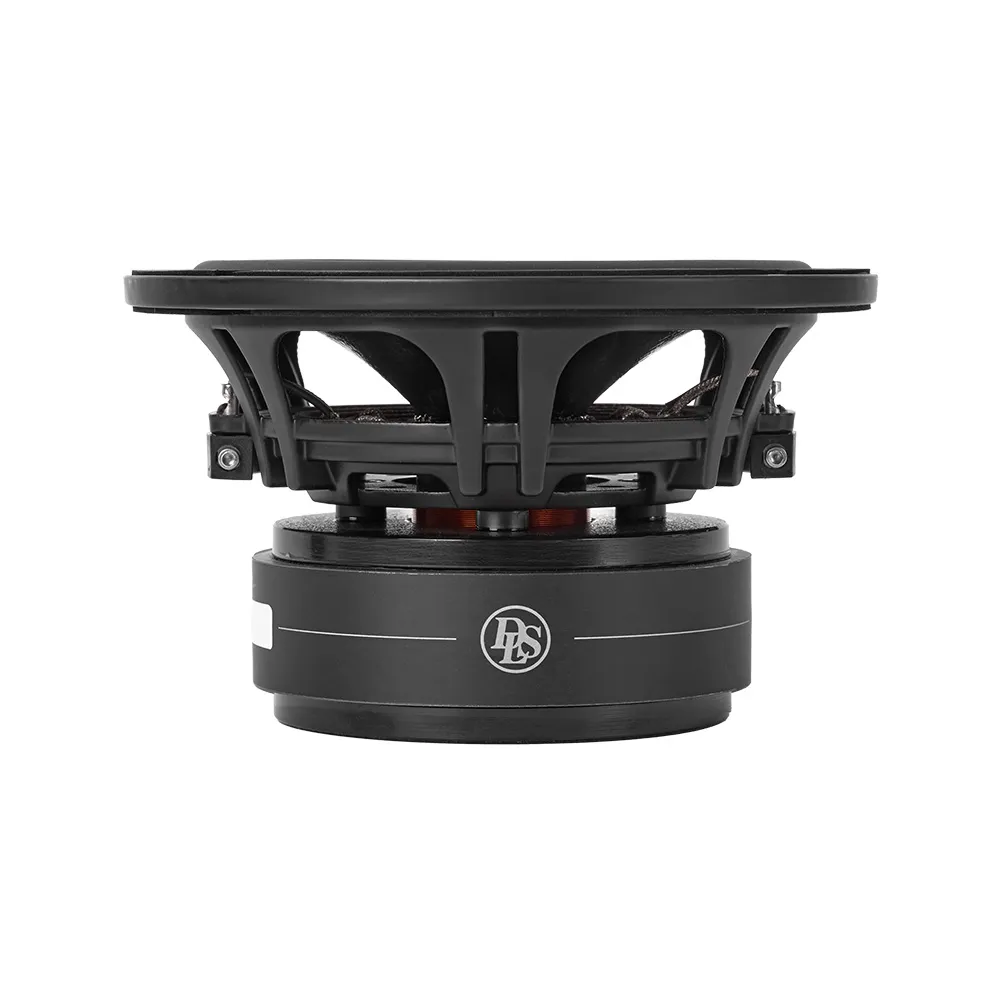

• Dual-stacked ferrite magnets (2×22.5oz)
• Die-cast aluminum basket
• Twin terminal for easier installation
• Optimized for smaller enclosures
• Premium Cruise grill included
PARAMETERS
Re: 3.8 (1.9+1.9) Ohm
Fs: 37.2 Hz
Mms: 42.1 gr
Cms: 0.27
VAS: 11.2 L
Qts: 0.39
Qes: 0.41
Qms: 7.19
Bl: 12.1 T.m
SPL: 85 dB 1W/1M
Sd: 143 cm²
