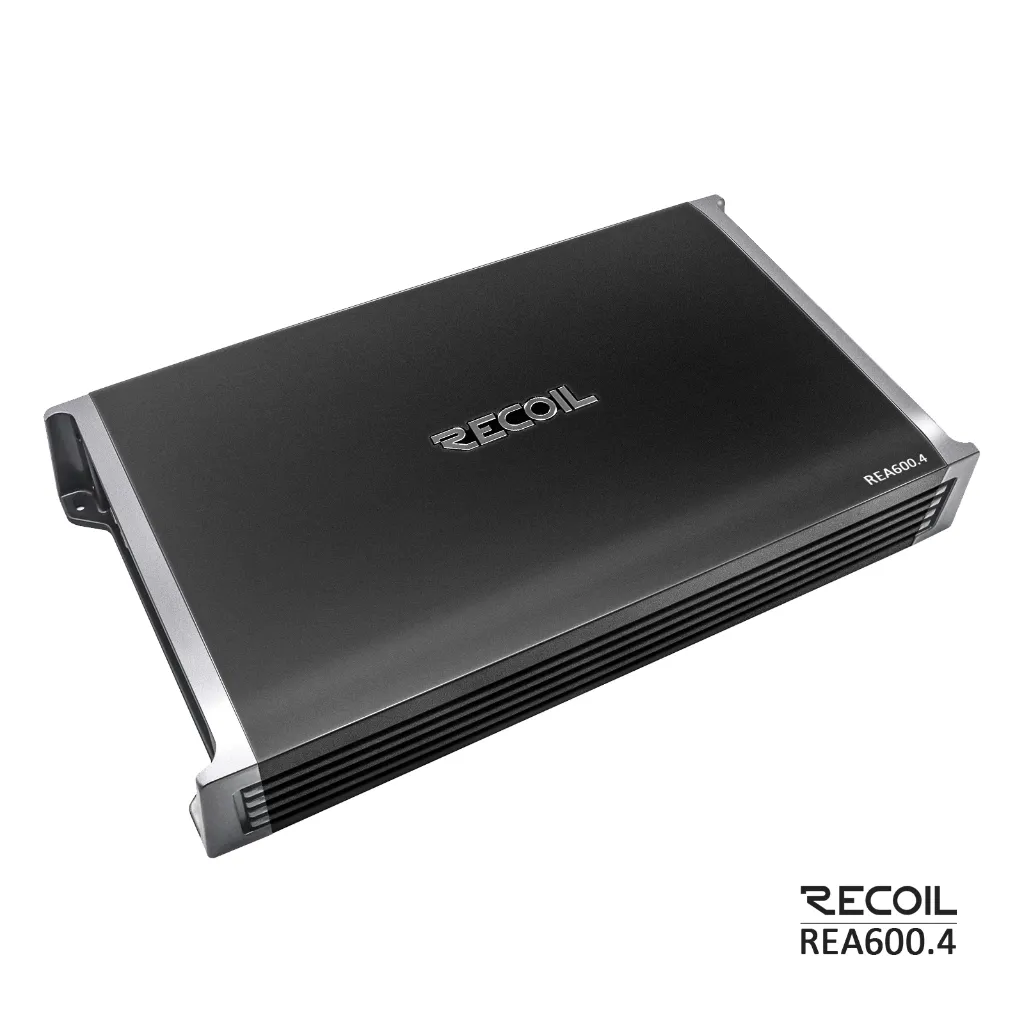

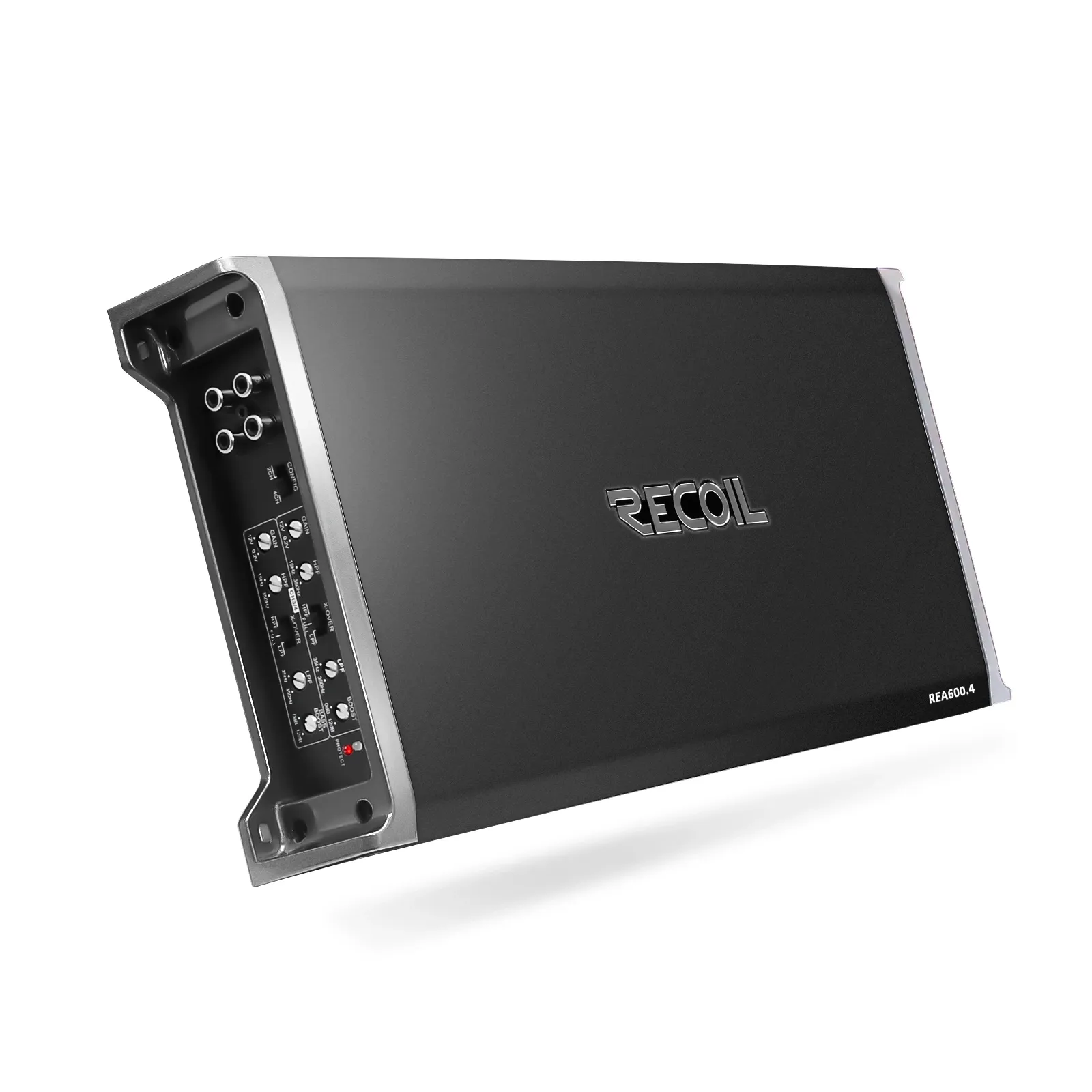

The REA600.4 is a powerful 4-channel Class A/B amplifier designed to power upgraded aftermarket speaker systems. With adjustable gain, HPF, LPF, crossover and bass EQ controls, it provides flexible tuning for a wide range of speaker setups.
Key Features:
-
Class A/B 4-channel amplifier
-
4-way protection circuitry
-
High-speed MOSFET power supply
-
Soft turn-on circuit
-
Tri-mode capable / bridgeable
-

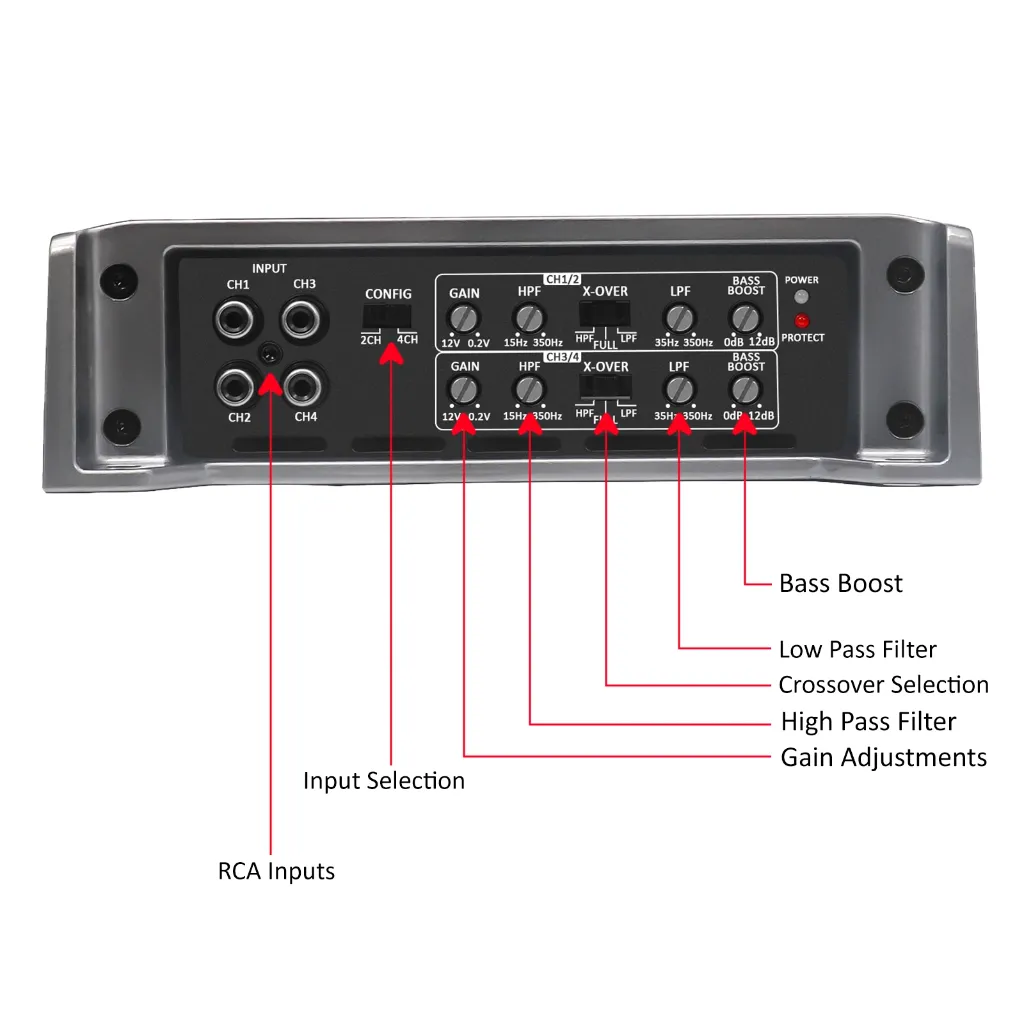

Adjustable gain, LPF, HPF, crossover and bass EQ
RMS Power @ 2 Ohm (14.4V): 130W x 4
RMS Power @ 4 Ohm (14.4V): 95W x 4
RMS Power (Bridged) @ 4 Ohm (14.4V): 260W x 2
Frequency Response: 20Hz-20kHz
Signal to Noise Ratio: 90dB
Bass Boost: 0-12dB
Low Pass Filter: 35Hz-350Hz
High Pass Filter: 15Hz-350Hz
Fuse Rating: 60A
Dimensions: 400mm x 193mm x 56mm
