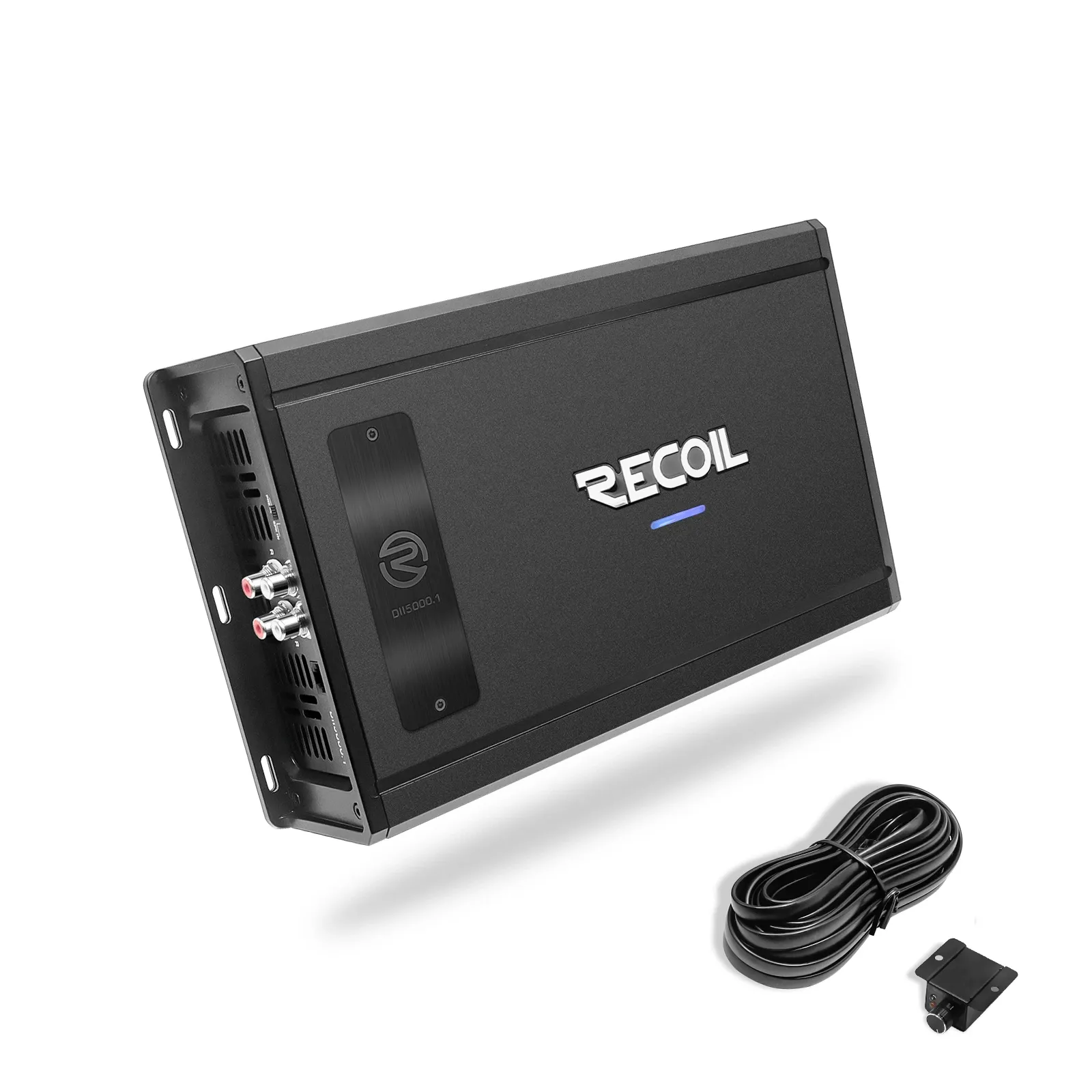

The DII5000.1 is a high-power mono Class-D amplifier designed specifically for demanding subwoofer applications. With up to 5200W x 1 @ 1 Ohm, it delivers serious output while offering adjustable bass boost, crossover controls and multiple protection features.
Key Features:
-
Mono Class-D amplifier
-
4-way protection circuit
-
Thermal, voltage, speaker and DC protection
-

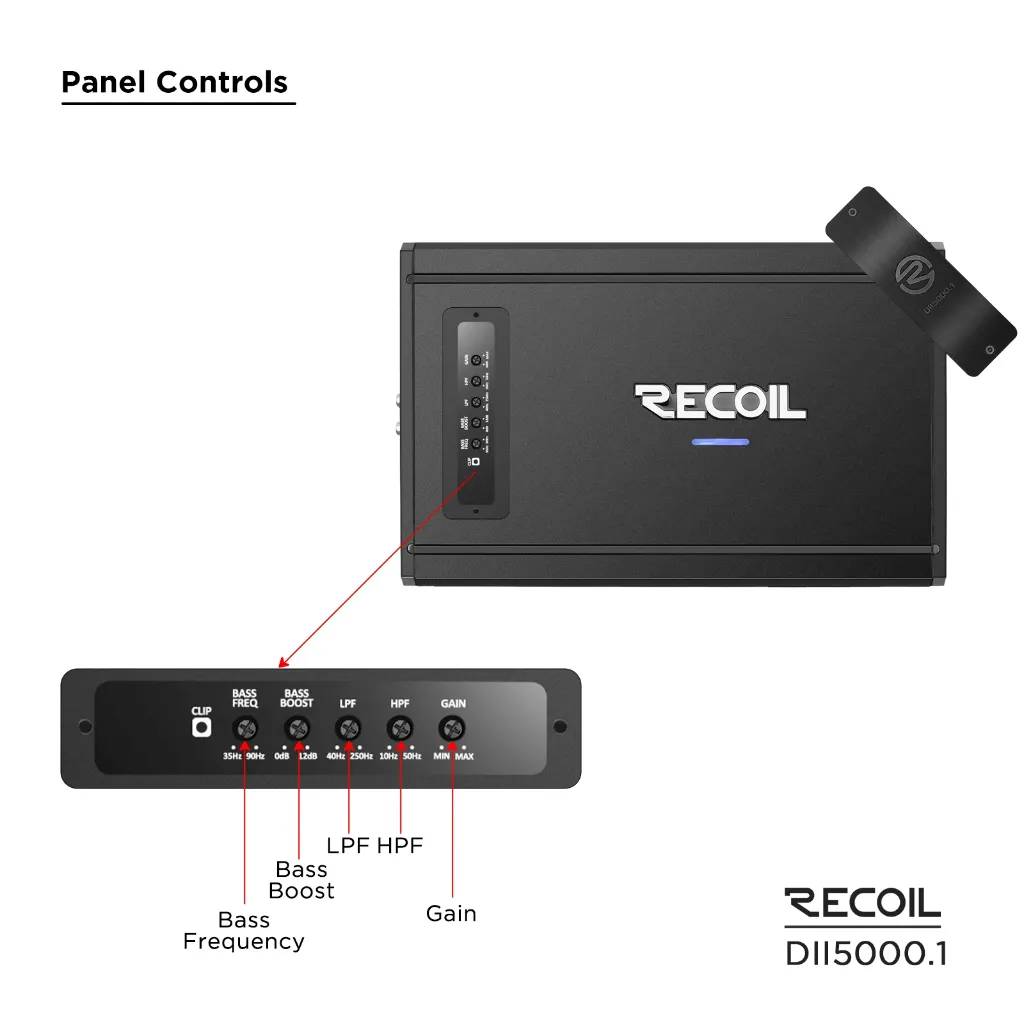

Adjustable bass boost
-
Bass remote included
-
Clip indication
-
Adjustable LPF and HPF crossover
-

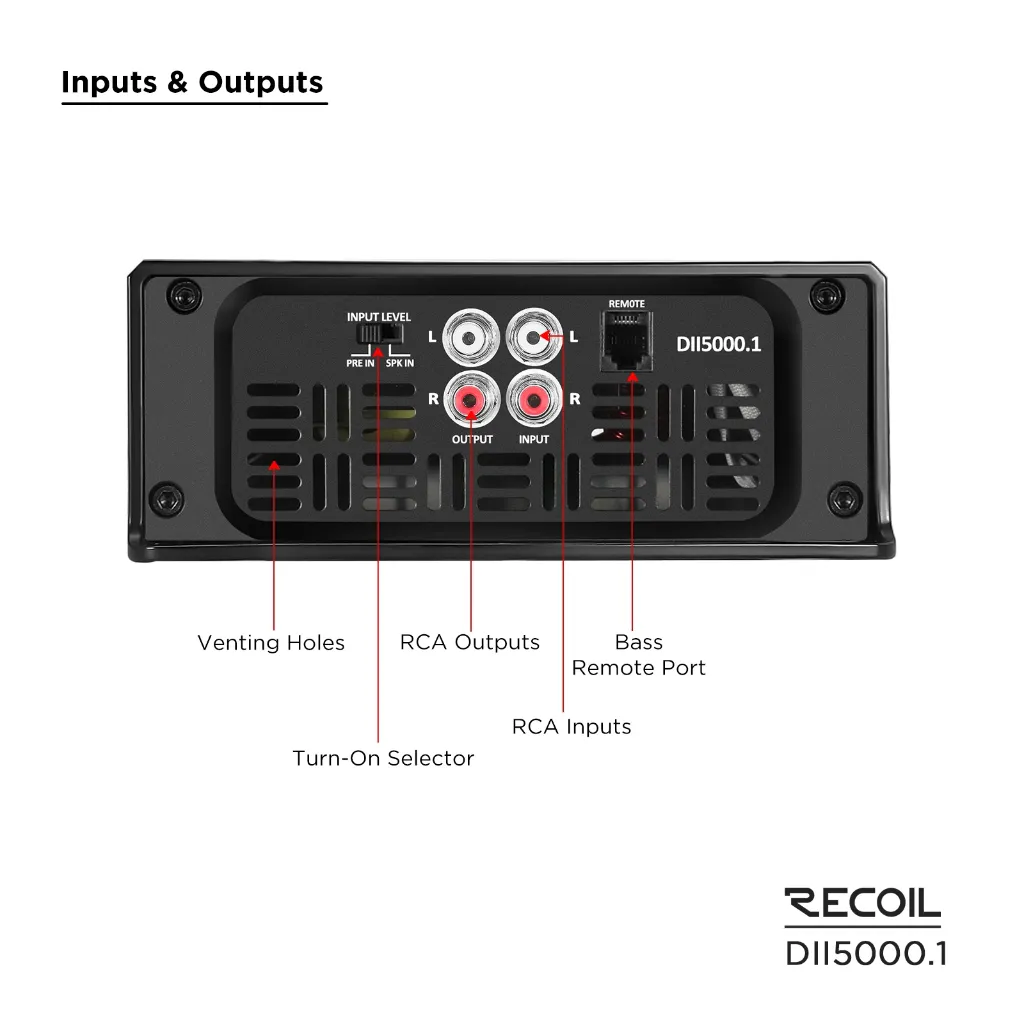

Low-level and high-level inputs
-
9V-16V operating voltage

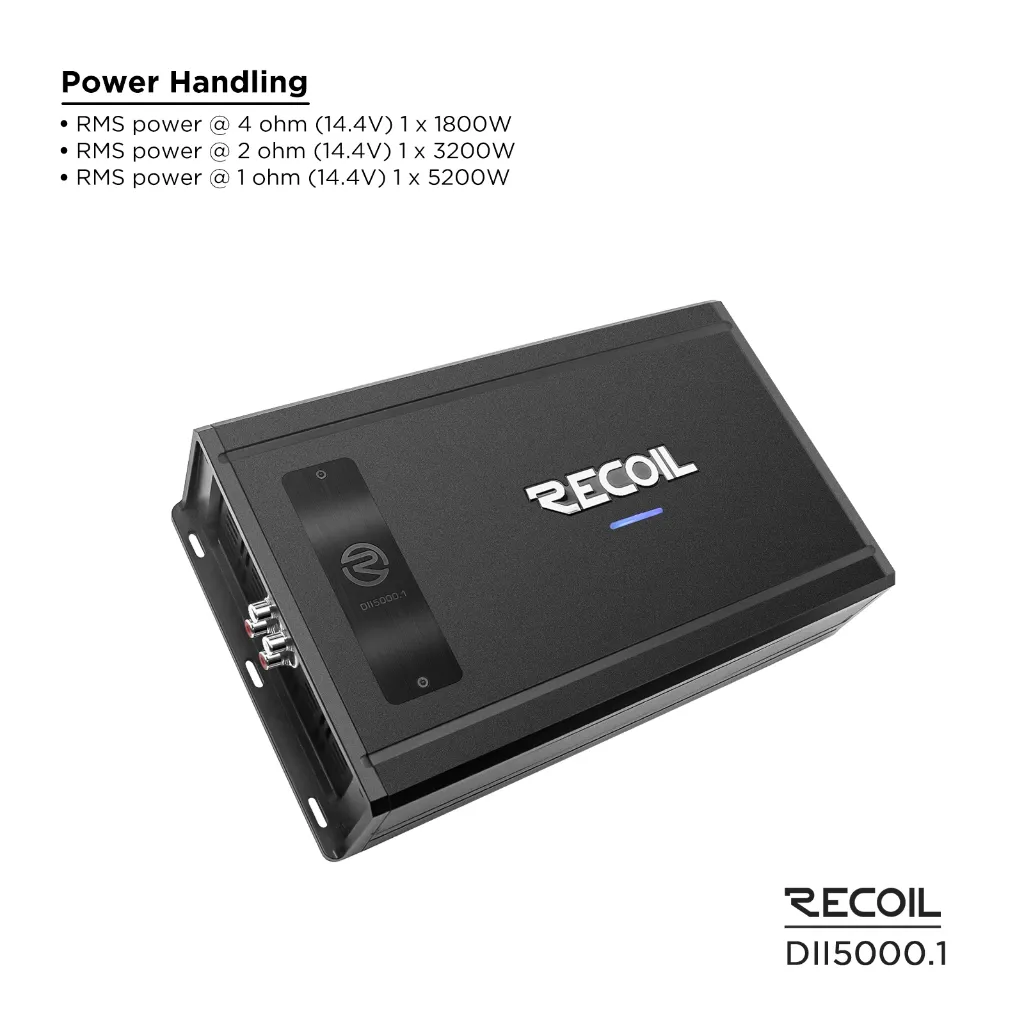

Power @ 1 Ohm (14.4V): 5200W x 1
Power @ 2 Ohm (14.4V): 3180W x 1
Power @ 4 Ohm (14.4V): 1800W x 1
Power (Bridged) @ 4 Ohm (14.4V): N/A
Power (Bridged) @ 2 Ohm (14.4V): N/A
Operating Voltage: 9V-16V
Idling Current (Power On): 2200mA
Frequency Response: 10Hz-275Hz
Signal to Noise Ratio (SNR): 99dB
THD+N (@ 1W): <0.1%
Input Sensitivity (Low Level): 1.2V-13V
Input Sensitivity (High Level): 0.2V-3.3V
Bass Boost: 0-16dB
Subsonic Filter: N/A
Crossover LPF: 48Hz-275Hz
Crossover HPF: 10Hz-53Hz
Bass Remote: Yes
Clip Indication: 1%
Fuse Rating: 350A
Dimensions: 301mm x 180mm x 70mm
