4-CH INPUTS & 6-CH OUTPUTS DSP

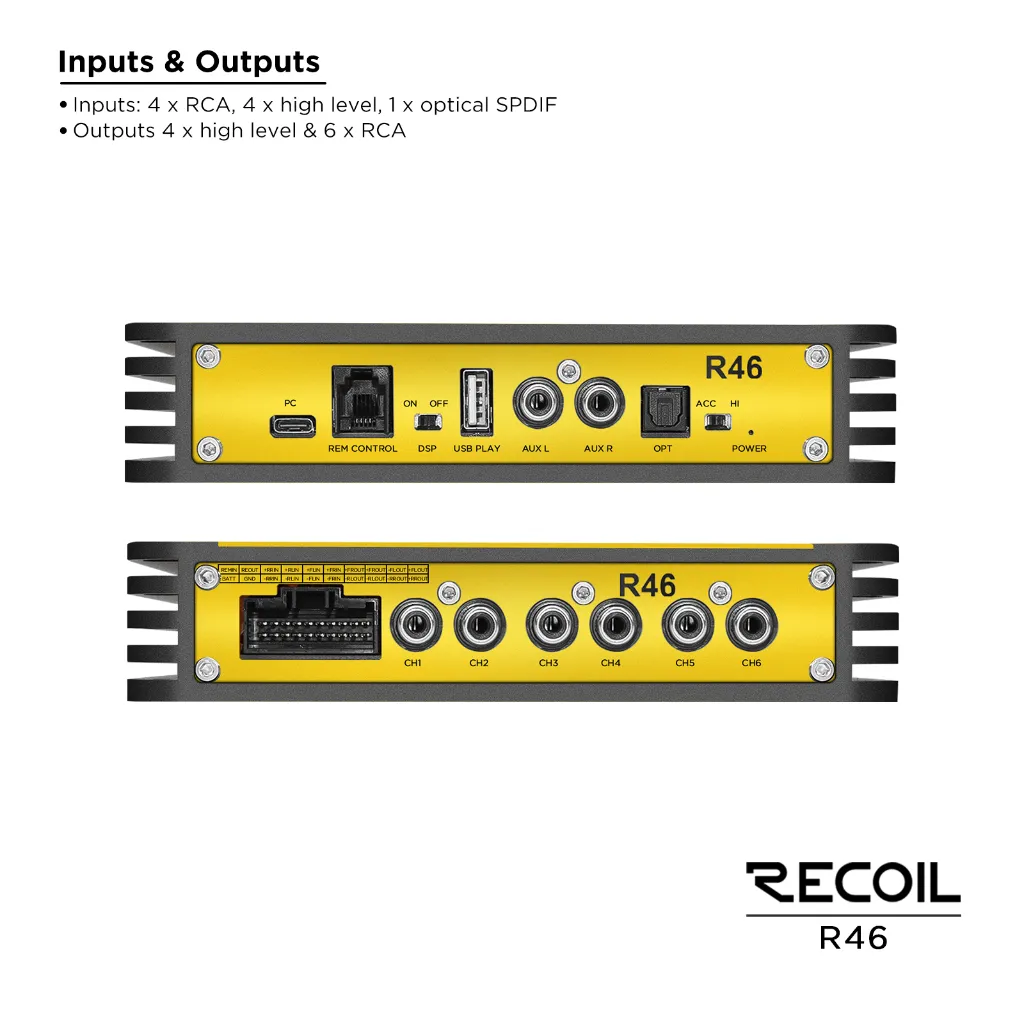

Inputs: 4 x RCA, 4 x high level, 1 x optical SPDIF
Outputs: 4 X high level & 6 x RCA

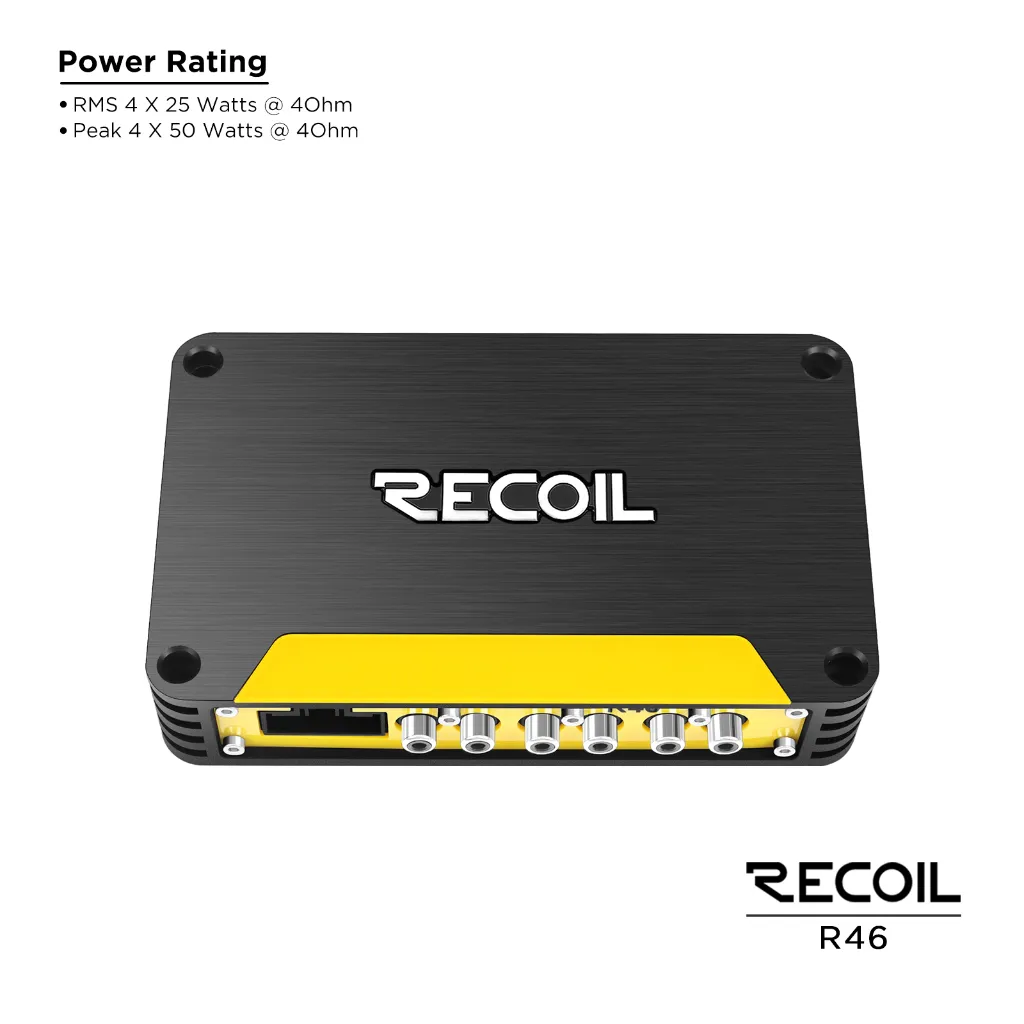

Power Rating (14.4V): @4Ohm: RMS 4 X 25 Watts / Peak 4 X 50 Watts @2Ohm: RMS 4 X 40 Watts / Peak 4 X 80 Watts

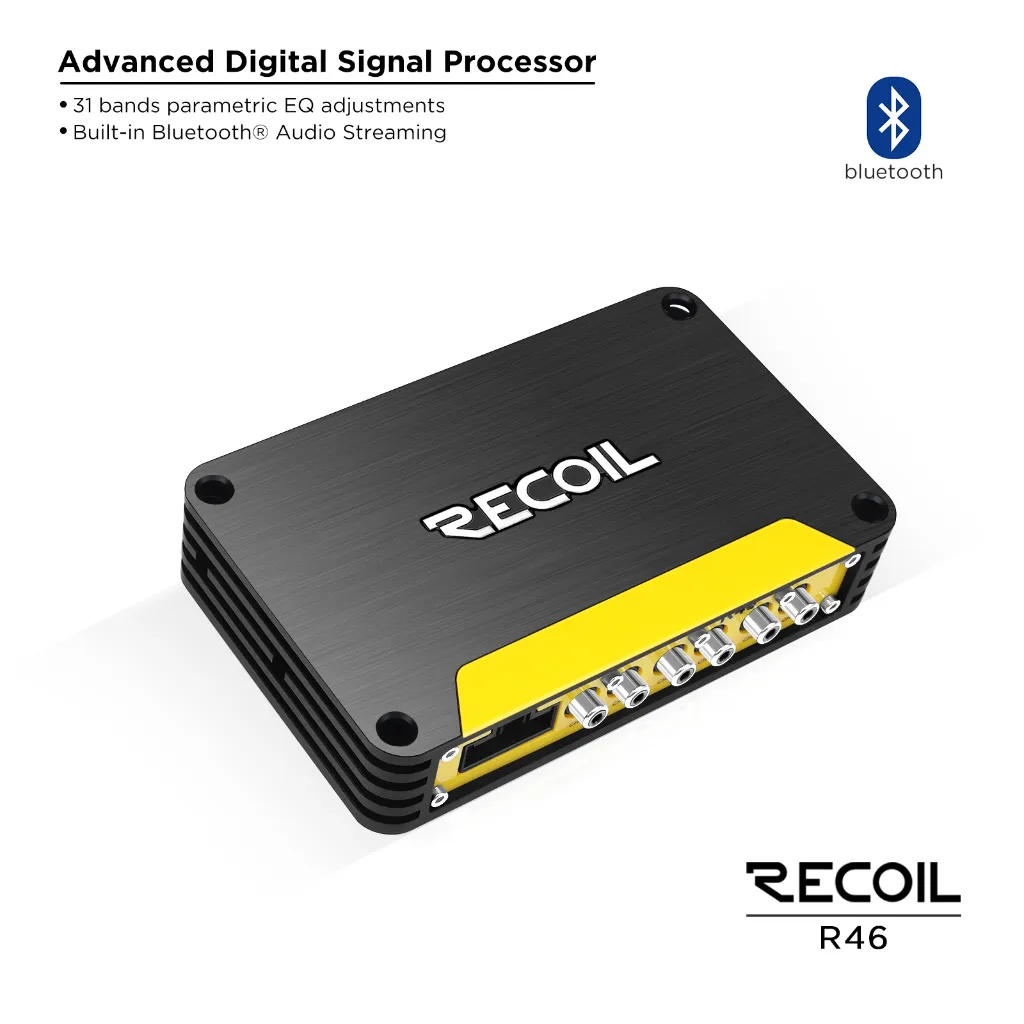

31 bands parametric EQ adjustments
Full gain, phase & time delay control of each channel
Multiple slope and class independent crossovers
Six preset favorite DSP tuning effects
AD and DA signal converters of the latest generation
Built-in USB driver & Bluetooth® audio streaming

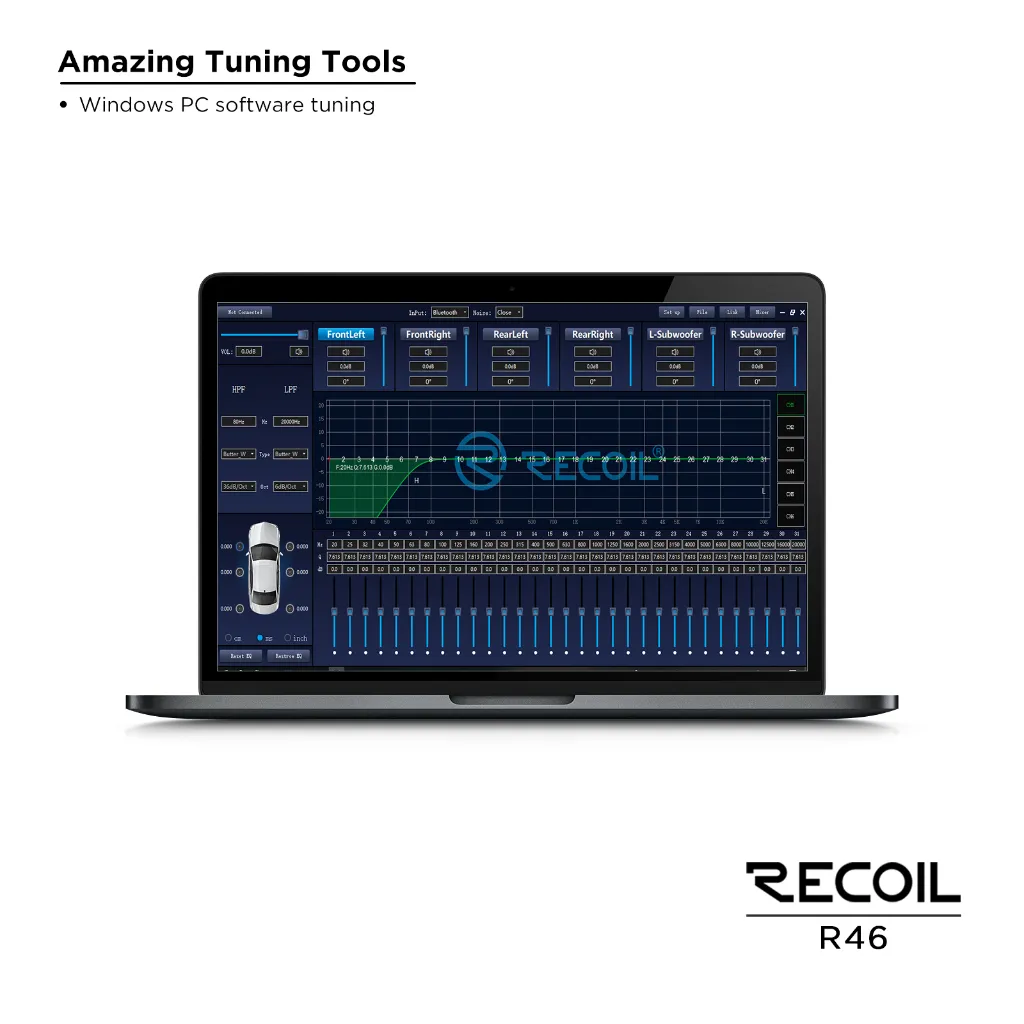

Windows PC software tuning
Rlug & play OEM harness (sold separately)

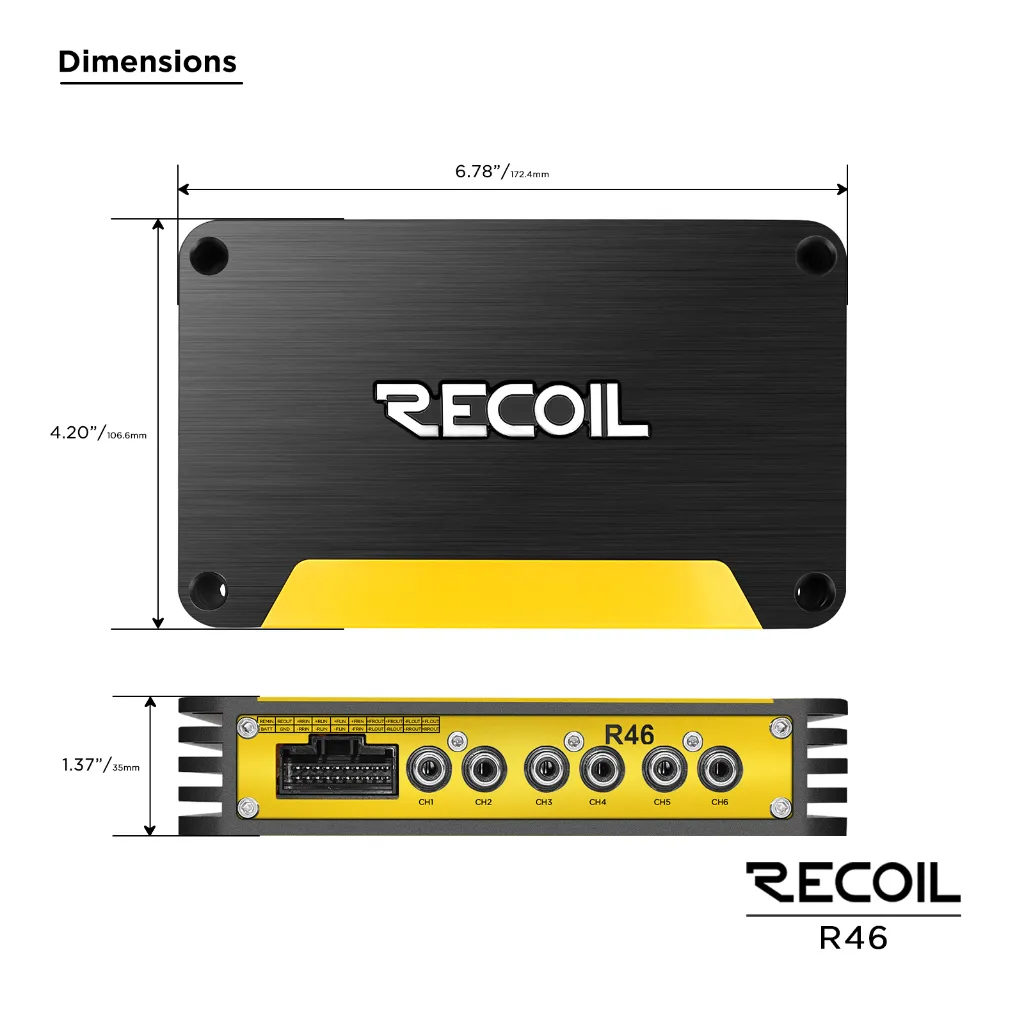

Dimensions: 6.78” x 4.2” x 1.38” (172.4mm x106.6mm x 35mm)
Optional DRC2 (sold separately)
