This Class-D monoblock amplifier is designed for high-powered subwoofer systems, delivering up to 2,527W RMS x 1 @ 1 Ohm and remaining stable down to 1 Ohm. A high-speed MOSFET power supply, efficient heatsink and 4-way protection circuitry provide reliable performance at high output levels.
Key Features:
-
Class-D monoblock subwoofer amplifier
-

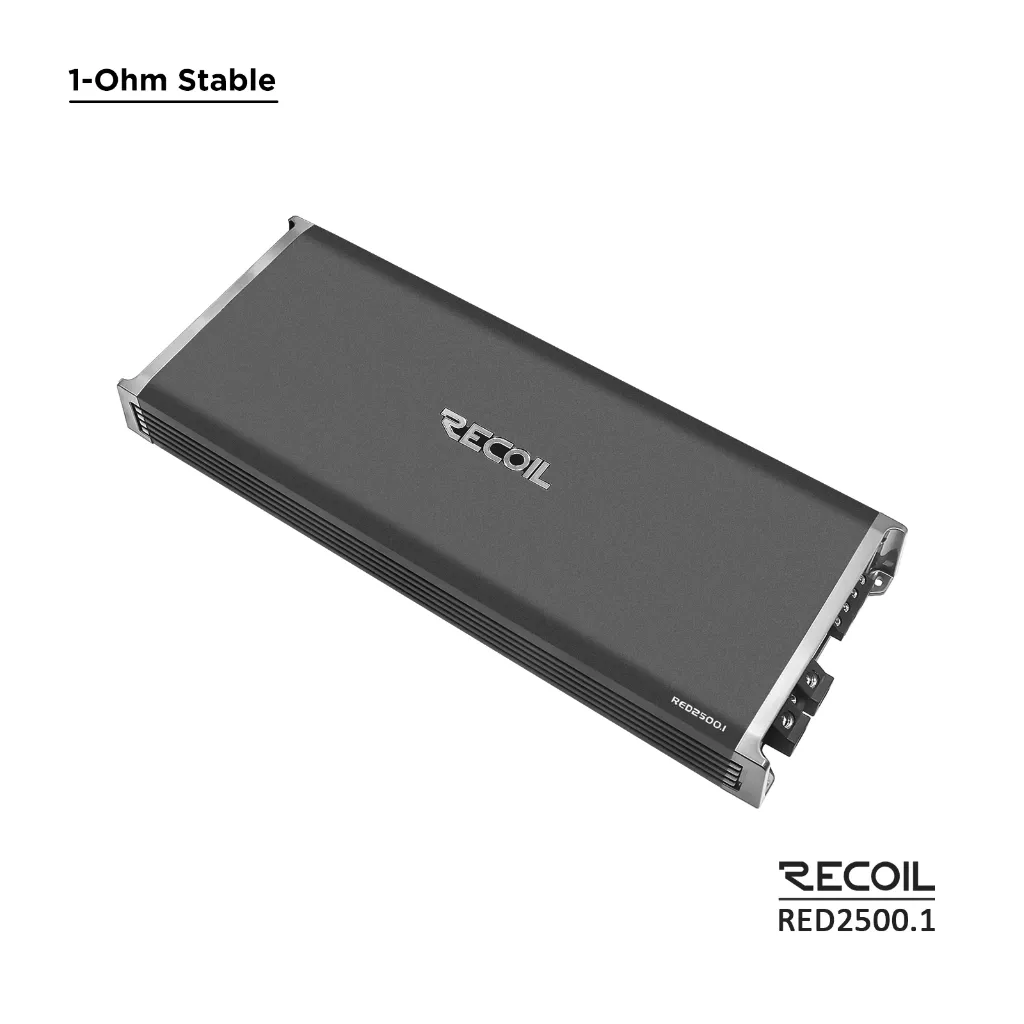

1 Ohm stable
-
High-speed MOSFET power supply
-
4-way protection circuitry
-
Built-in bass EQ
-

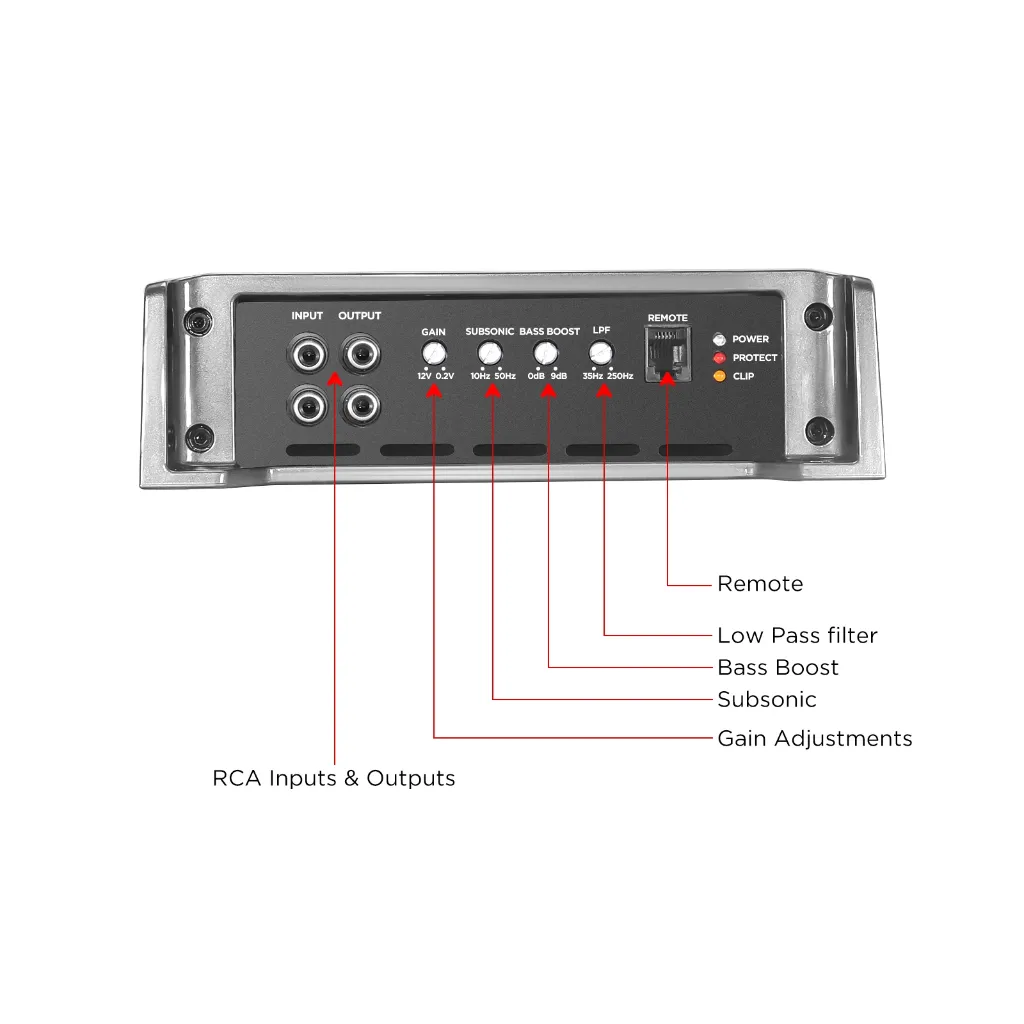

Variable gain, LPF and subsonic controls
-
Soft turn-on circuit
-
Remote bass control included
-
1/0 Gauge power and ground terminals

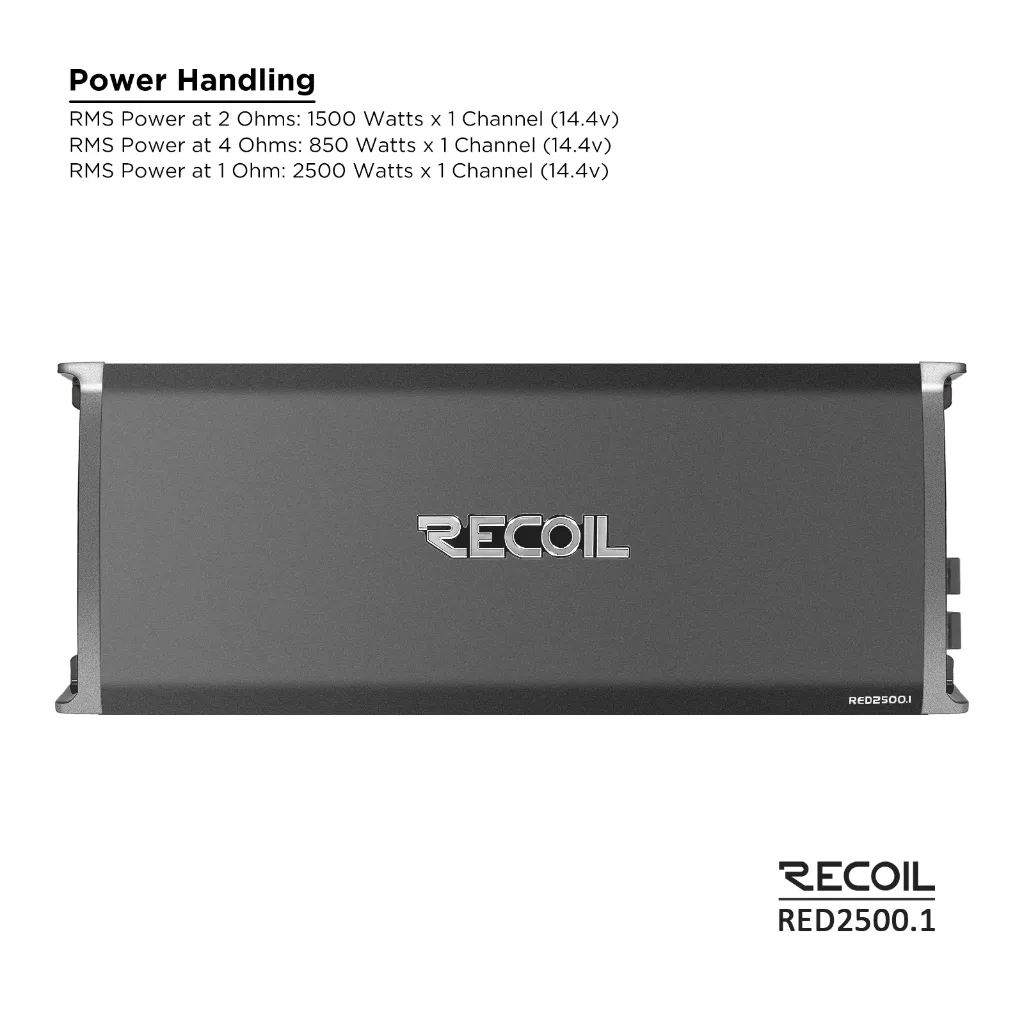

RMS Power @ 1 Ohm (14.4V): 2527W x 1
RMS Power @ 2 Ohm (14.4V): 1500W x 1
RMS Power @ 4 Ohm (14.4V): 840W x 1
Peak Power @ 1 Ohm (14.4V): 5000W x 1
Frequency Response: 12Hz-260Hz
Signal to Noise Ratio: 98dB
Bass Boost: 0-9dB
Low Pass Filter: 40Hz-260Hz
Subsonic Filter: 12Hz-55Hz
Fuse Rating: 250A
Dimensions: 500mm x 193mm x 56mm
