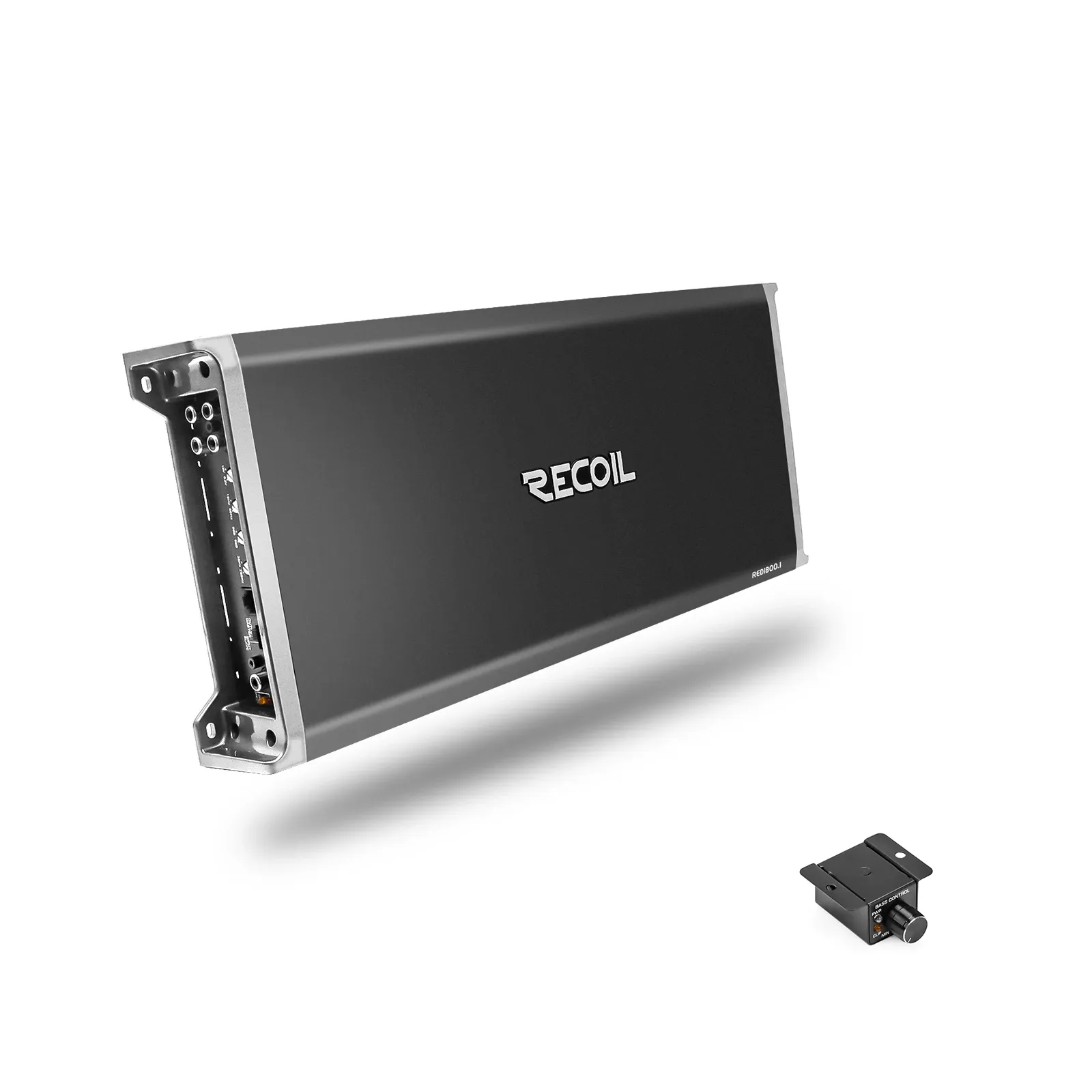

The RED1800.1 is a powerful 1 Ohm stable Class-D monoblock amplifier designed for high-performance subwoofer systems. It can also be linked with an identical amplifier using the master/slave configuration, allowing significantly higher power output.
Key Features:
-
Class-D monoblock subwoofer amplifier
-

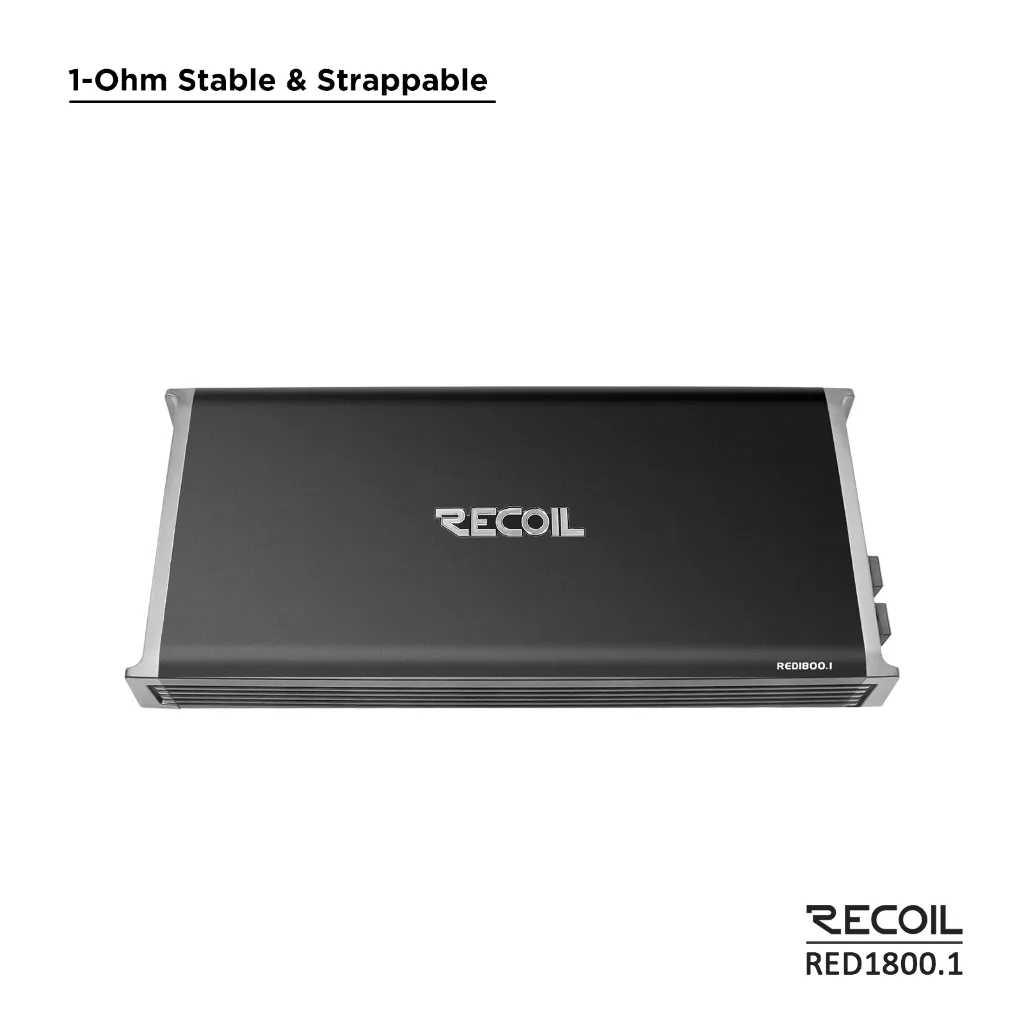

1 Ohm stable
-
Linkable using master/slave configuration
-
High-speed MOSFET power supply
-
4-way protection circuitry
-

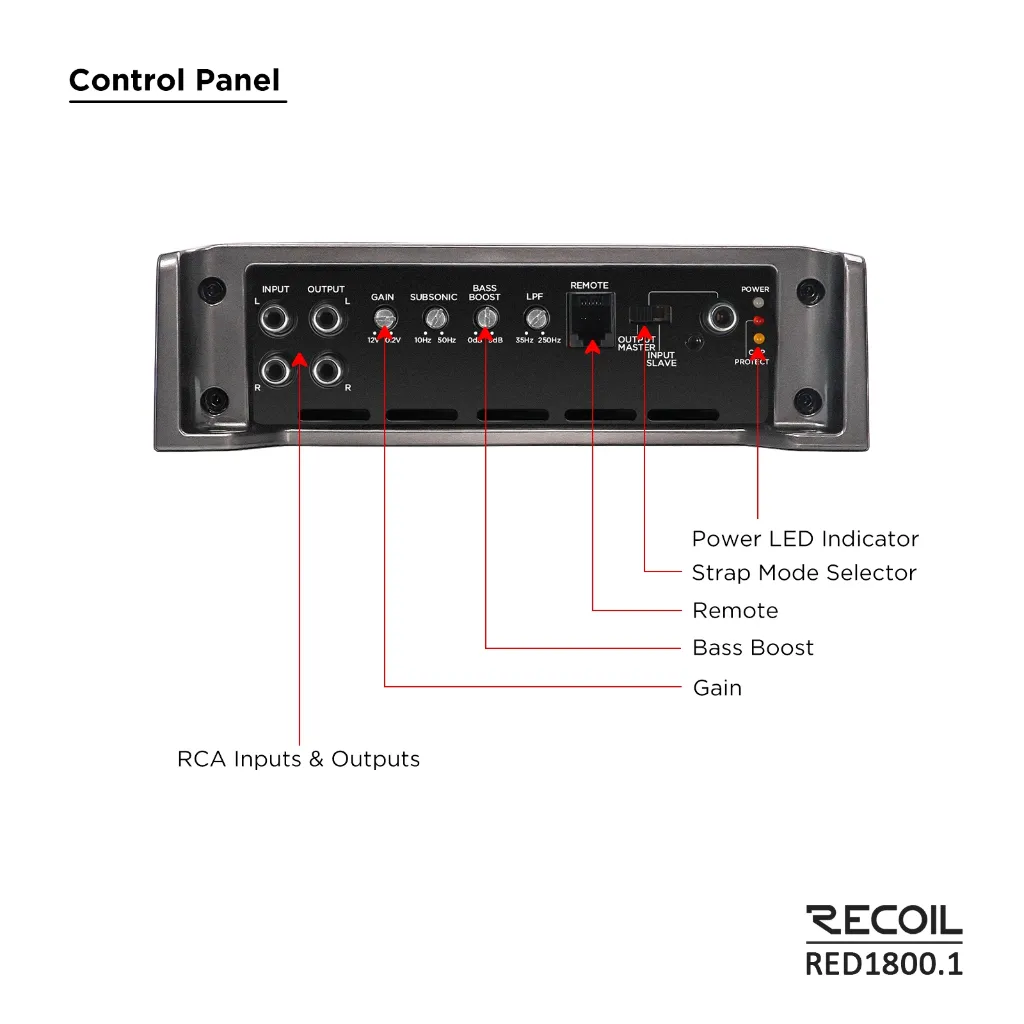

Adjustable bass EQ, gain, LPF and subsonic filter
-
Soft turn-on circuit
-
Remote bass control included
-

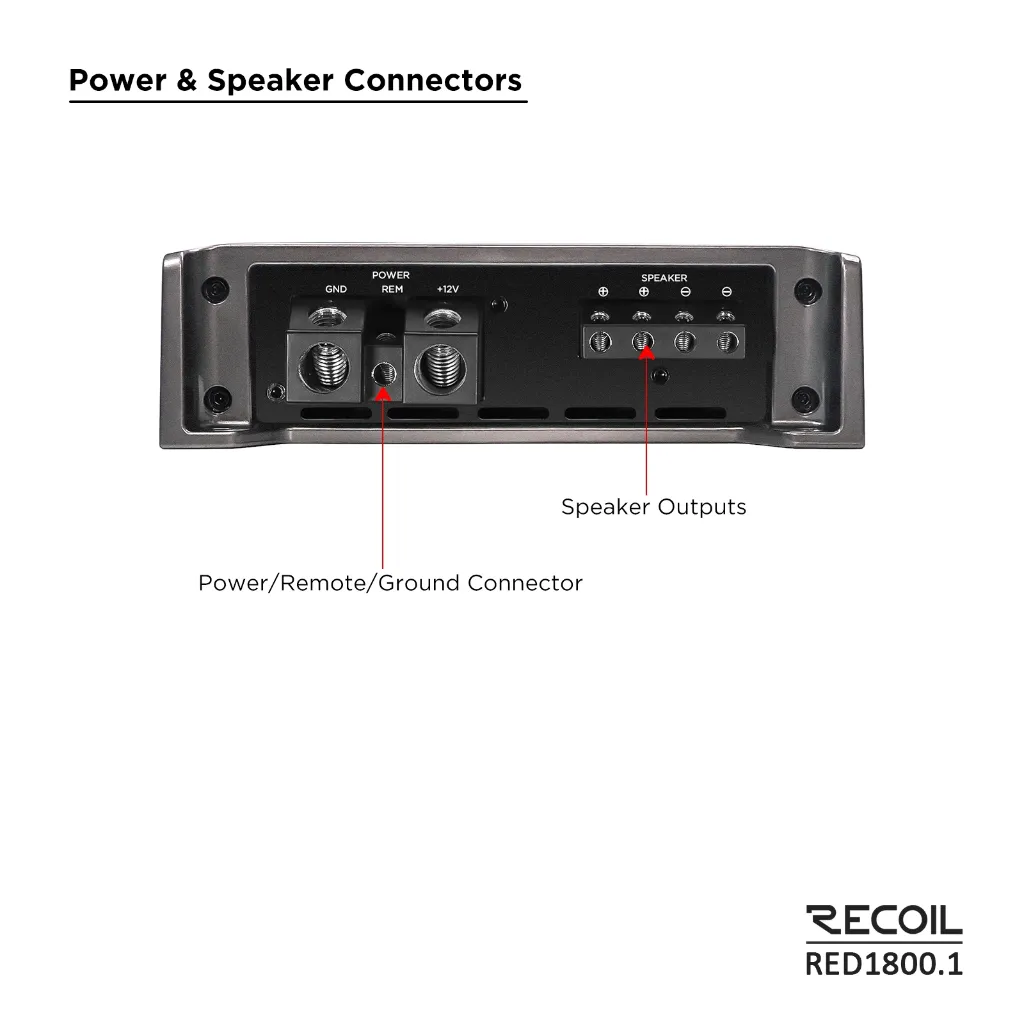

1/0 Gauge power and ground terminals
RMS Power @ 1 Ohm (14.4V): 1800W x 1
RMS Power @ 2 Ohm (14.4V): 1200W x 1
RMS Power @ 4 Ohm (14.4V): 650W x 1
LINKED RMS Power @ 2 Ohm (14.4V): 3600W x 1
LINKED RMS Power @ 4 Ohm (14.4V): 2400W x 1
Frequency Response: 10Hz-250Hz
Input Sensitivity: 12V-0.2V
Signal to Noise Ratio: 97dB
Bass Boost: 0-9dB
Low Pass Filter: 35Hz-250Hz
Subsonic Filter: 10Hz-50Hz
Fuse Rating: 130A

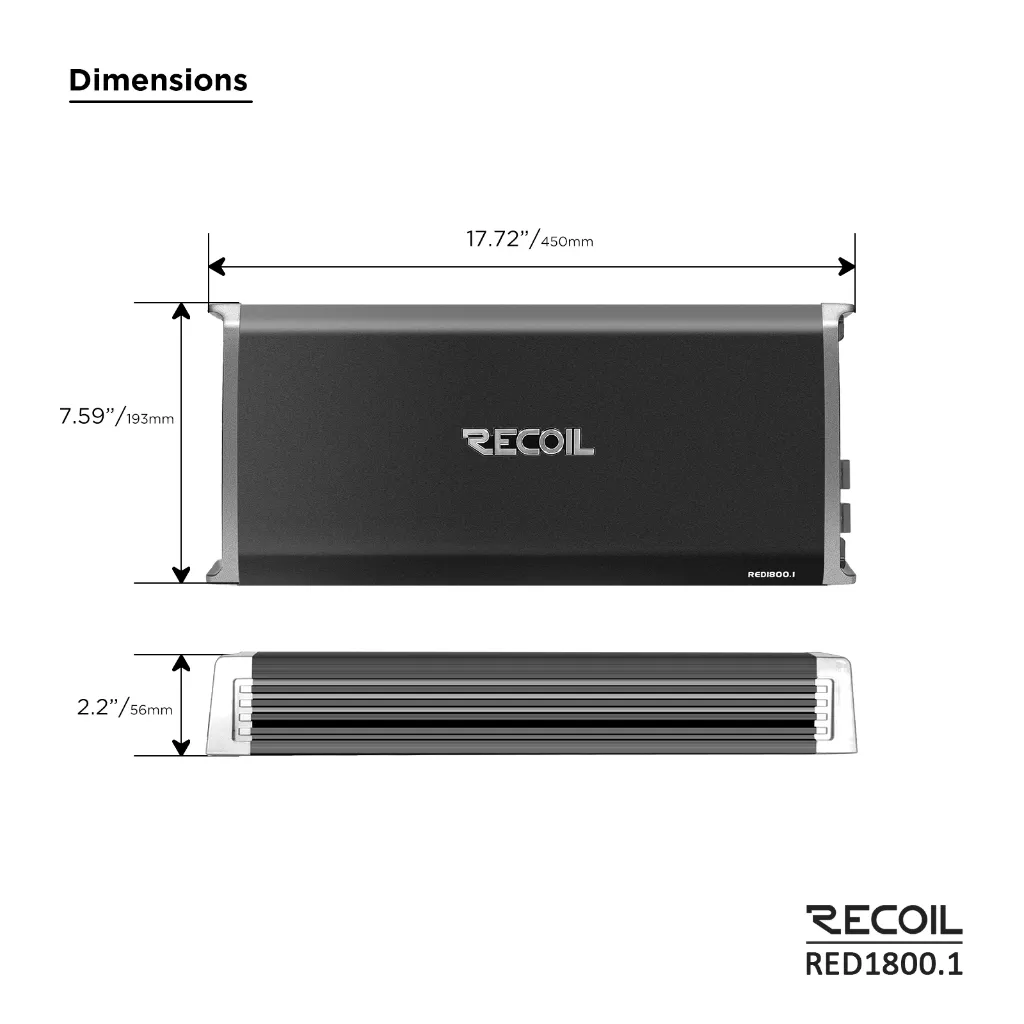

Dimensions: 450mm x 193mm x 56mm
