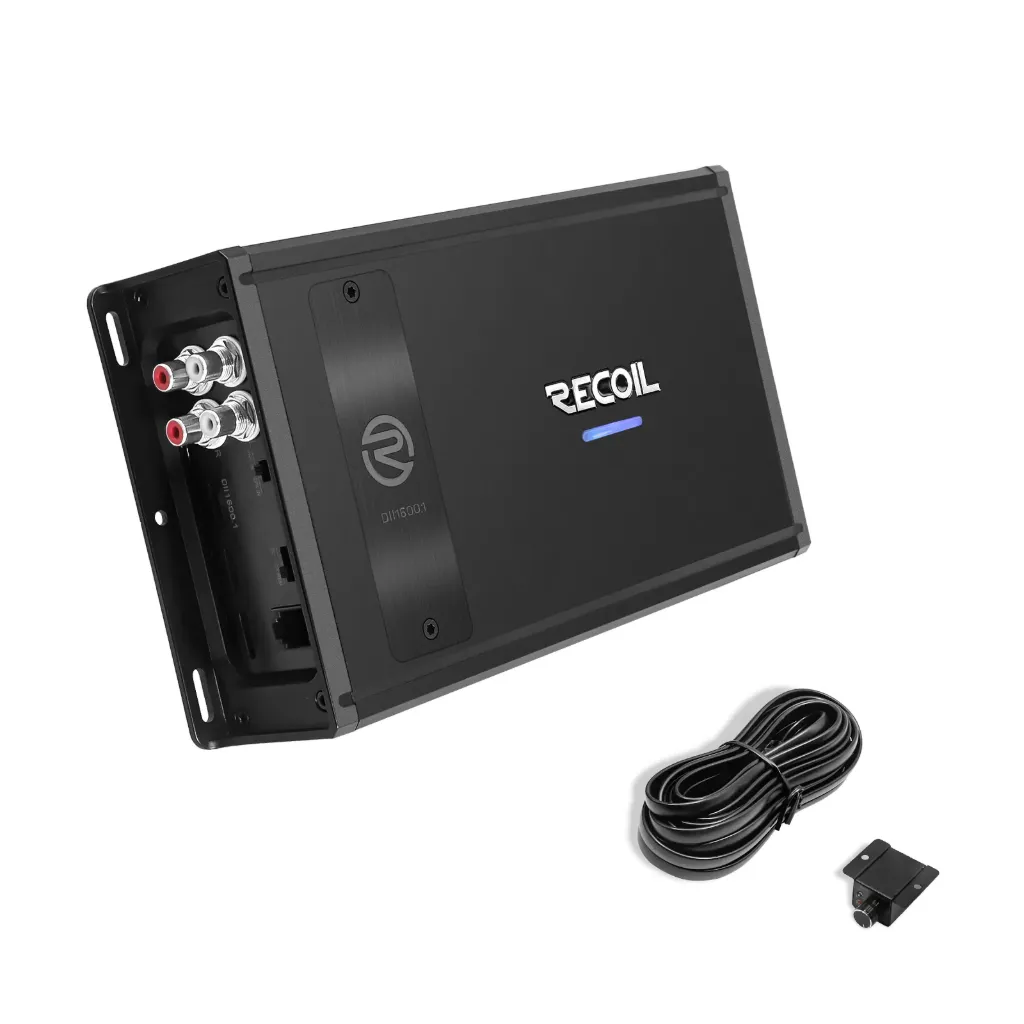

1600 WATTS CLASS-D MONO AMPLIFIER
Power @1Ohm (14.4V) N/A

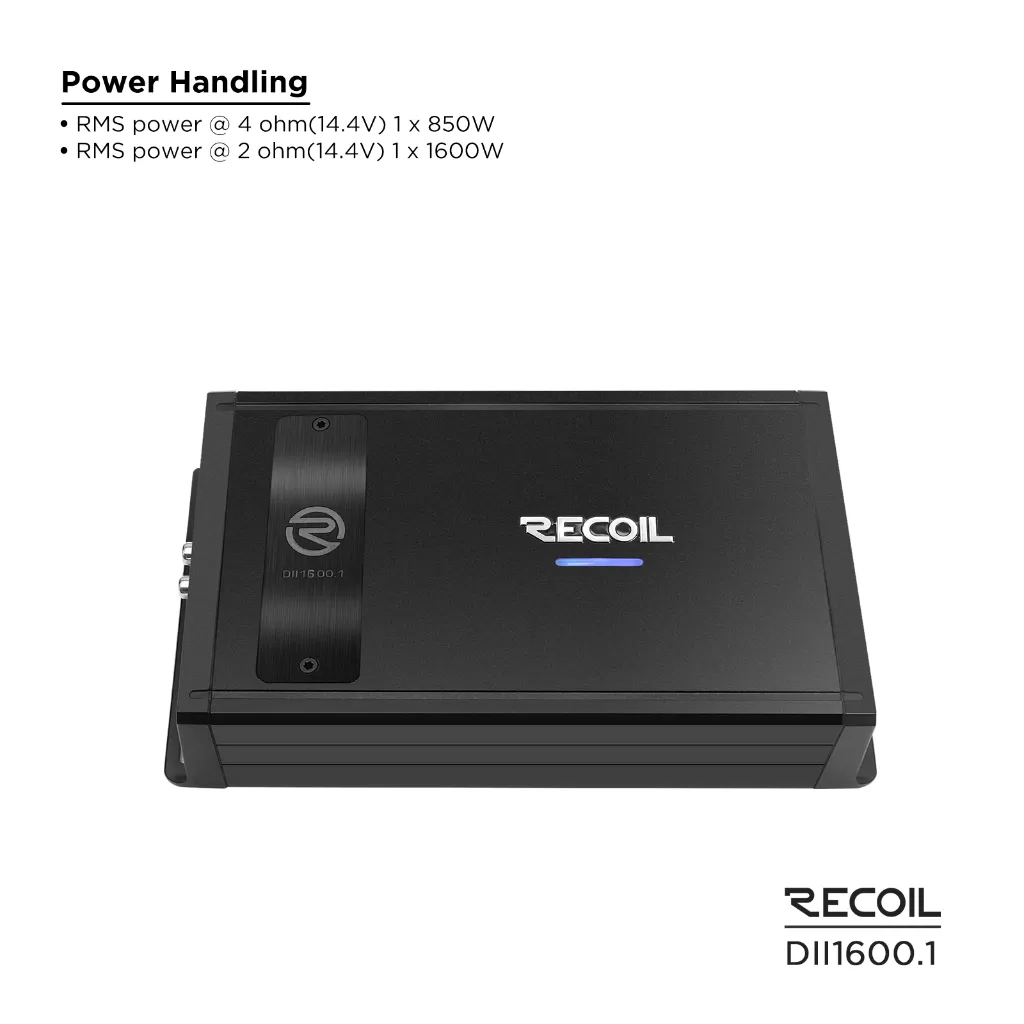

Power @2Ohm (14.4V) 1600W x 1
Power @4Ohm (14.4V) 820W x 1
Power (Bridged) @4Ohm (14.4V) N/A
Class D Mono Amplifier, 3,200 Watts Max Power, RMS 1,600 Watts x 4@2 Ohm; RMS 850 Watts x 4@4Ohm
Features: RCA level and speaker level inputs / Turn-on mode selection (REM, VOX, DC) / RCA pass-through outputs / Thermal, voltage, speaker, short circuit protection

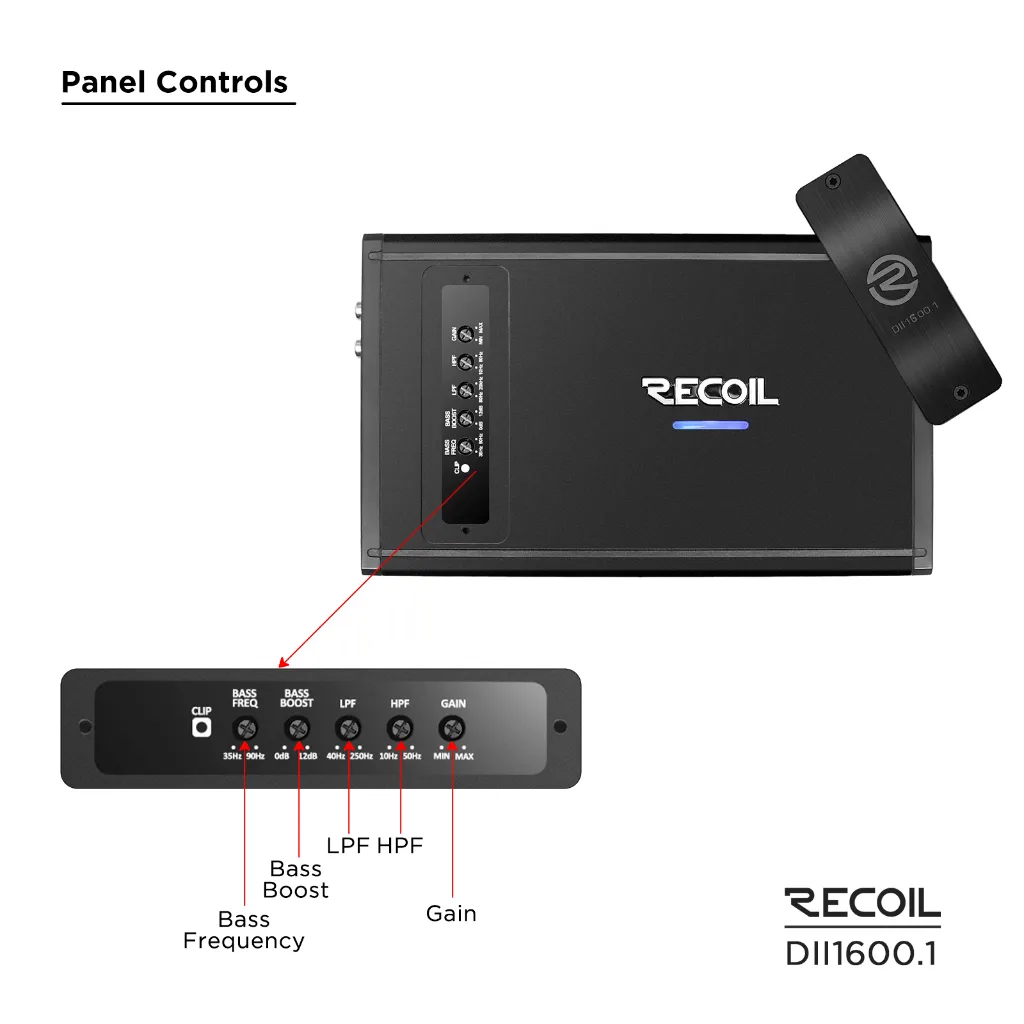

Top mounted clip LED indicator and control panel for easy access,such as the gain, LPF, HPF, crossover, bass boost etc.
DII series amps are designed with conformal coated circuit board protects against dust and water. They can be used for powersports, marine, golfcart and bike applications.

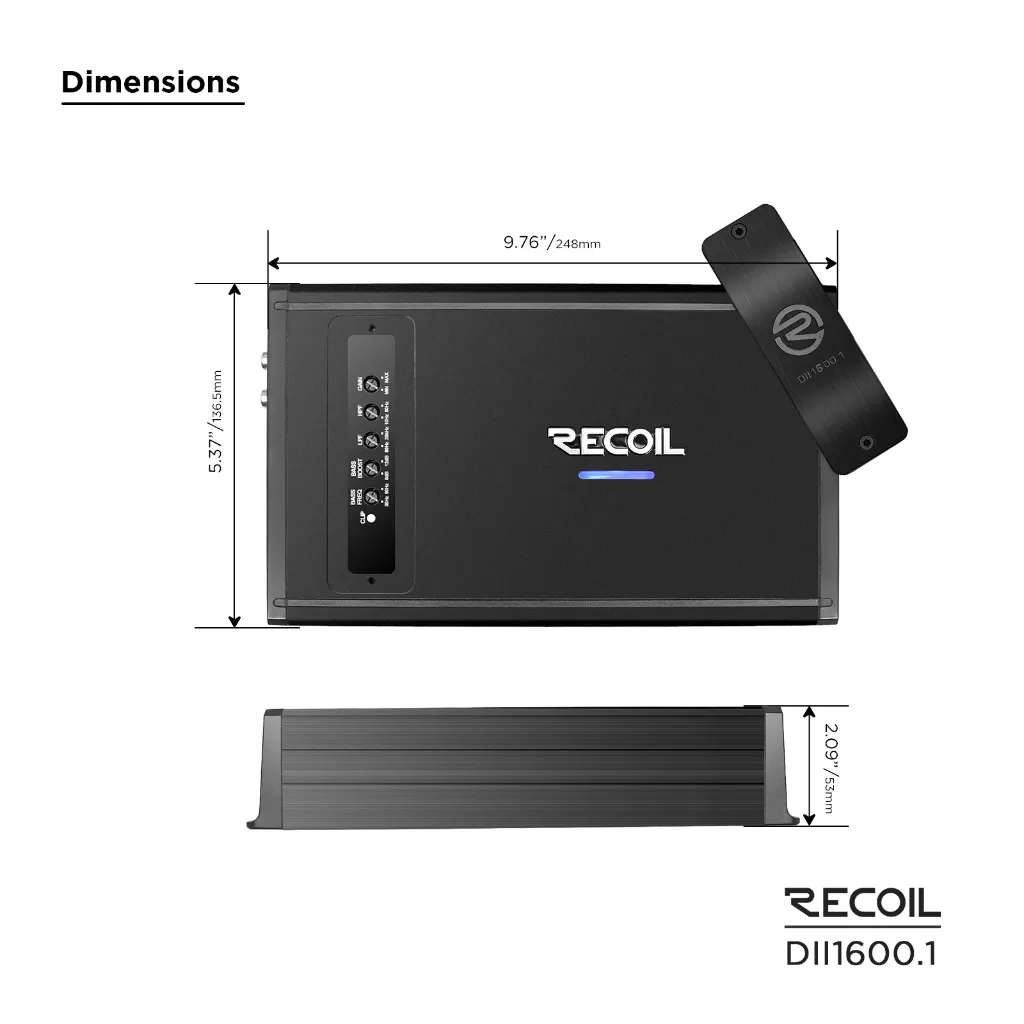

Highly efficient heatsinks keep the amplifier cool with a sophisticated new look. Ultra-compact dimension: 9.76″ x 5.37″ x 2.09″ (248mm x 136.5mm x 53mm)
