10"/250mm Slim Type Subwoofer
A great value 10 inch slim subwoofer with durable quality and high performance
Specifications
| Size | 10"/250mm |
|---|
| Impedance | 4 Ohm |
|---|
| Power RMS | 400W |
|---|
| Power MAX | 800W |
|---|
| Sensitivity | 84 dB |
|---|
| Voice coil size | 2"/51mm |
|---|
| Voice coil material | 4-layer copper/Kapton former |
|---|
| Magnet | 50 Oz Ferrite |
|---|
| Freq.range | 25 – 500 Hz |
|---|
| Weight | 4,8 kg |
|---|

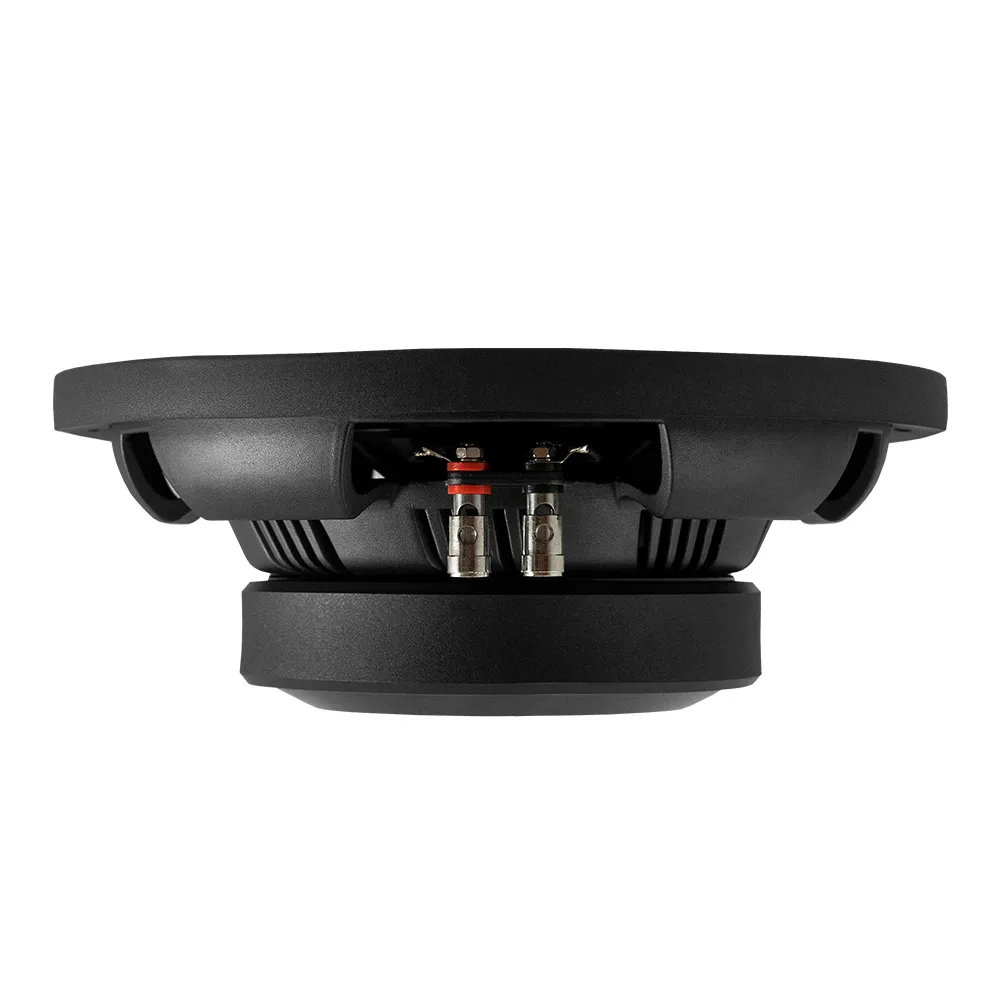

PS10 – 10” Slim subwoofer with the unique DLS audio experience at a great value. An upgrade with durable quality and high performance.
• Good sounding bass in limited space.
• Narrow installation depth (86 mm).
• Strong Injection moulded PP cone.
• Great power handling @ 400W RMS
PARAMETERS
Fs: 35 Hz
Re: 3.2 Ohm
Qms: 9.99
Qes: 0.52
Qts: 0.51
Cms: 0.15 mm/N
Mms: 132 g
Bl: 10.4
Vas: 28.2 L
Sd: 346.4 cm2
Xmax: ± 9 mm
Vd: 1.5 L
